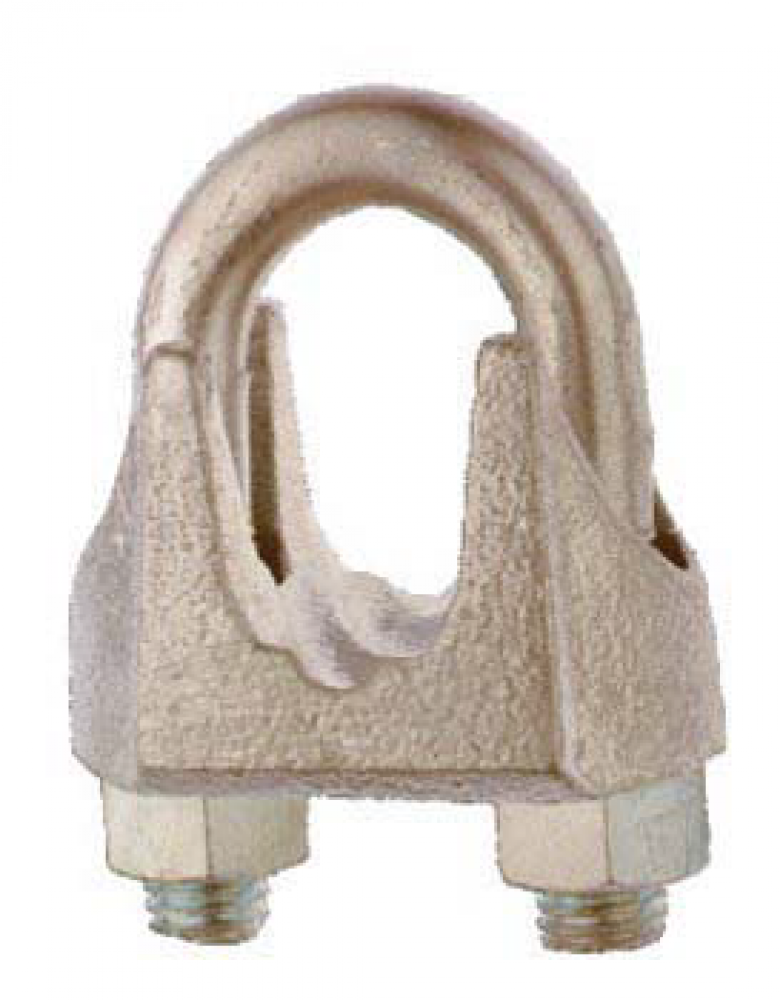

Malleable Wire Rope Clips
$
0
79
/ 1
- Part Number: 2901 0024
- UPC:
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Wire Rope and Fittings
Industrial Subtype:
Wire Rope Clips
Description:
GALVANIZED MALLEABLE WIRE ROPE CLIPS
Detail:
3/8 ''
Dimensions (Inch) (A):
0.36
Dimensions (Inch) (B):
1.5
Dimensions (Inch) (D):
0.88
Dimensions (Inch) (F):
0.92
Dimensions (Inch) (G):
1.58
Dimensions (Inch) ©:
1.06
Dimensions (Inch) €:
0.9
Finish:
Electro-Galvanized
Item Weight (kgs):
0.1
Min. No. Clips:
3
Nut Torque (ft/lbs):
30
Rope Diameter:
3/8
Standard:
FF-C-450D, Type 1, Class 2
Turn Back Length (Inch):
9.5
Type:
Light Duty
Unit:
/1
Weight:
21.5 lbs/100'
Other Details
Electro-galvanized fi nish
Federal Specifi cation FF-C-450D, Type 1, Class 2
Rope diameter stamped on saddle
The tightening torque values shown are based upon the threads being clean, dry and free of lubrication
To be used for light duty, non-critical applications only
Torque tested threads
Typical uses include guard lines and fencing
