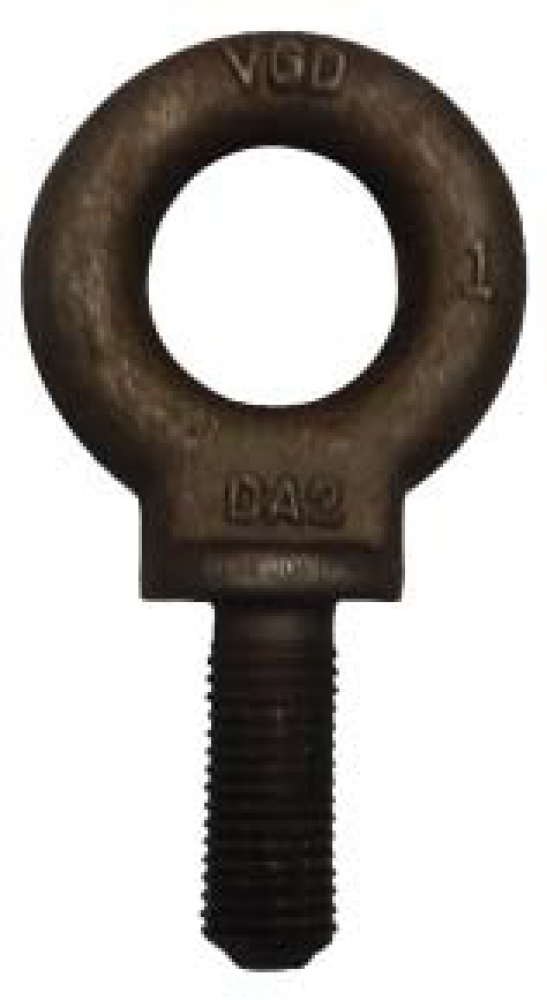

Machined Eye Bolts
$
66
31
/ 1
- Part Number: 2975 9025
- UPC:
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Bolts
Industrial Subtype:
Eyebolts
Description:
MACHINERY EYE BOLT
Design Factor:
Proof Load 2:1 WLL, Ultimate Load 5:1 WLL
Detail:
1 X 2-1/2"
Dimensions (Inch) (A):
0.993
Dimensions (Inch) (B):
2.414
Dimensions (Inch) (D):
1.774
Dimensions (Inch) (F):
0.943
Dimensions (Inch) (G):
2.356
Dimensions (Inch) ©:
3.563
Dimensions (Inch) €:
6.551
Item Weight (kgs):
1.089
Material:
Carbon Steel
Proof Load (lbs):
26600
Size:
1 X 2-1/2
Standard:
ASME B30.26, UNC
Type:
Machined
Unit:
/1
Weight:
2.38 lbs
WLL (lbs):
13300
Other Details
Design factor proof load 2:1 WLL, ultimate load 5:1 WLL
Forged carbon steel
Permanently embossed with trace code, VGD© and size for traceability to meet ASME B30.26
Quenched and tempered
UNC Threads
