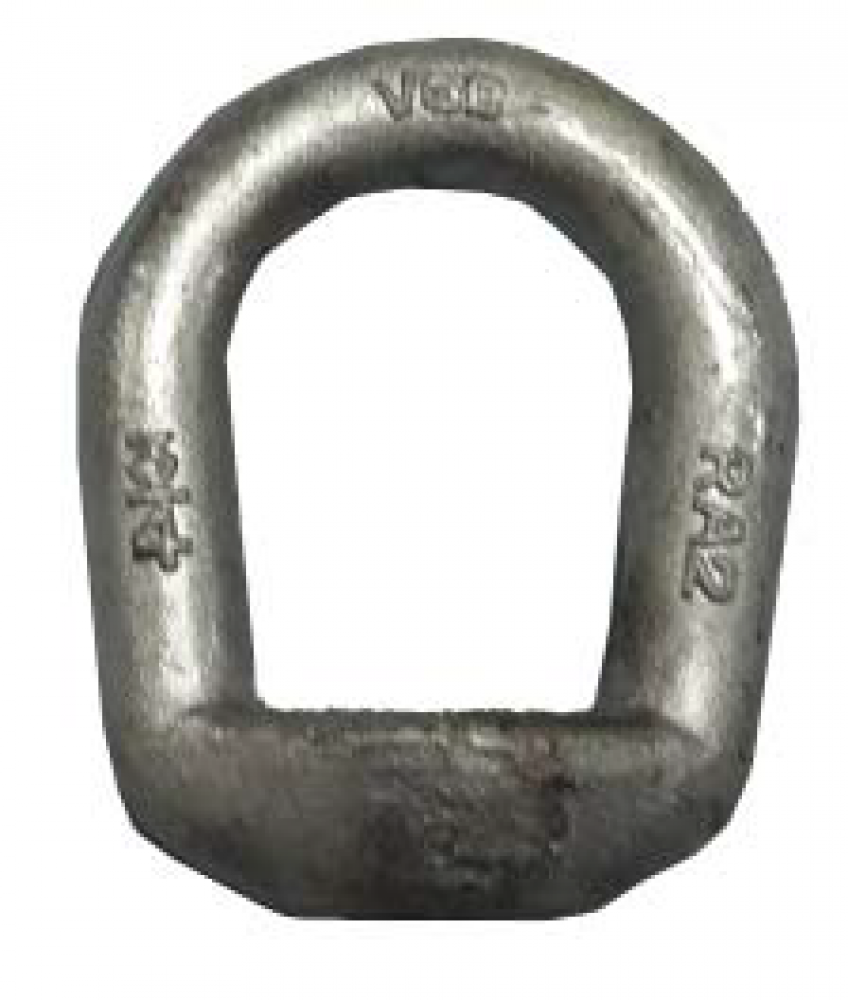

Forged Eye Nuts
$
23
38
/ 1
- Part Number: 2974 0056
- UPC:
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Nuts
Industrial Subtype:
Eye Nuts
Description:
FORGED EYE NUT (TAP SIZE 1") - NOMINAL SIZE :
Design Factor:
Proof Load 2:1 WLL, Ultimate Load 5:1 WLL
Detail:
7/8 ''
Dimensions (Inch) (A):
3.894
Dimensions (Inch) (B):
2.232
Dimensions (Inch) (D):
1.804
Dimensions (Inch) (F):
4.952
Dimensions (Inch) (G):
0.887
Dimensions (Inch) ©:
3.015
Dimensions (Inch) €:
0.827
Finish:
Hot Dipped Galvanized
Item Weight (kgs):
0.68
Material:
Carbon Steel
Nominal:
7/8
Size:
7
Standard:
ASME B30.26, UNC
Tap Size:
1
Type:
Forged
Unit:
/1
Weight:
2.75 lbs
WLL (lbs):
10000
Other Details
Design factor proof load 2:1 WLL, ultimate load 5:1 WLL
Forged carbon steel
Hot dipped galvanized
Permanently embossed with trace code, VGD© and size for traceability to meet ASME B30.26
Quenched and tempered
UNC Threads
