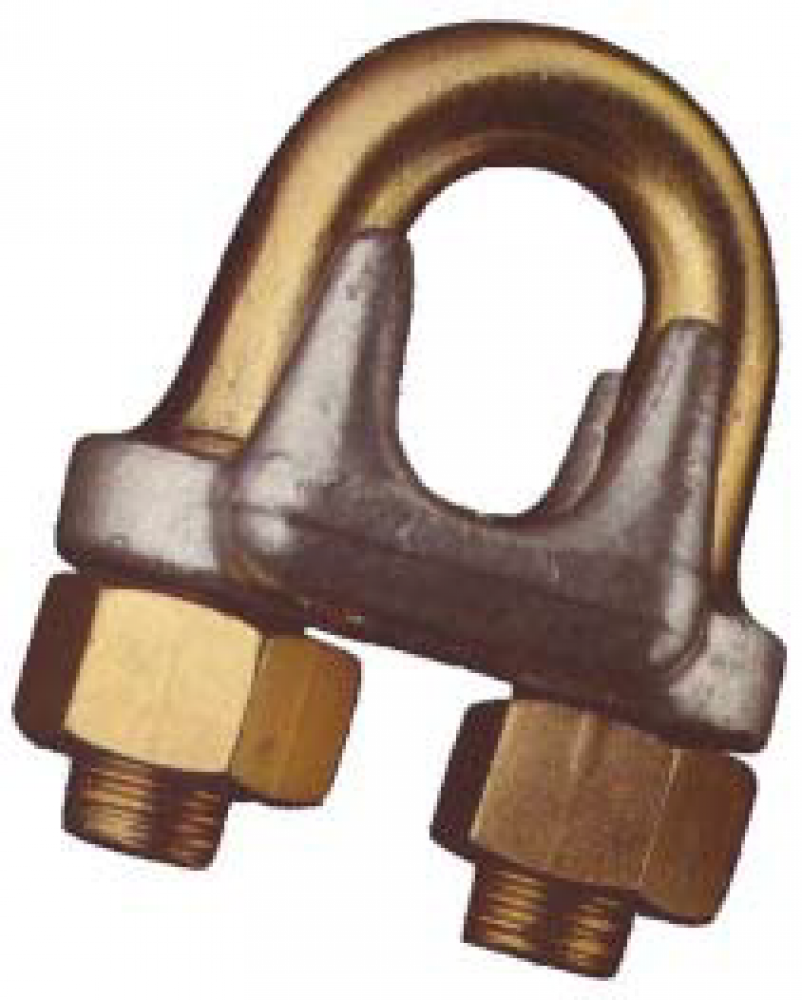

‘Golden U-Bolt’ ® Forged Wire Rope Clips
$
6
44
/ 1
- Part Number: 2907 0048
- UPC:
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Wire Rope and Fittings
Industrial Subtype:
Wire Rope Clips
Description:
"GOLDEN-U-BOLT" DROP-FORGED WIRE ROPE CLIP
Detail:
3/4 ''
Dimensions (Inch) (A):
0.61
Dimensions (Inch) (B):
2.84
Dimensions (Inch) (D):
1.51
Dimensions (Inch) (F):
2.25
Dimensions (Inch) (G):
2.82
Dimensions (Inch) ©:
1.51
Dimensions (Inch) €:
1.4
Finish:
Gold Chromated, Hot Dipped Galvanized
Item Weight (kgs):
0.644
Min. No. Of Clips:
4
Nut Torque (ft/lbs):
130
Rope Diameter:
3/4
Standard:
FF-C-450, Type 1, Class 1, ASME B30.26
Turn Back Length (Inch):
18
Type:
Golden U-Bolt
Unit:
/1
Weight:
142 lbs/100'
Other Details
Forged saddle, hot dipped galvanized, permanently embossed with VGD®, size and forged
Gold Chromated U-Bolts and Nuts identify ‘Vanguard’ product
Meet Federal Spec. FF-C-450, Type 1, Class 1 and ASME B30.26 standard
The tightening torque values shown are based upon the threads being clean, dry and free of lubrication.
Torque tested threads
