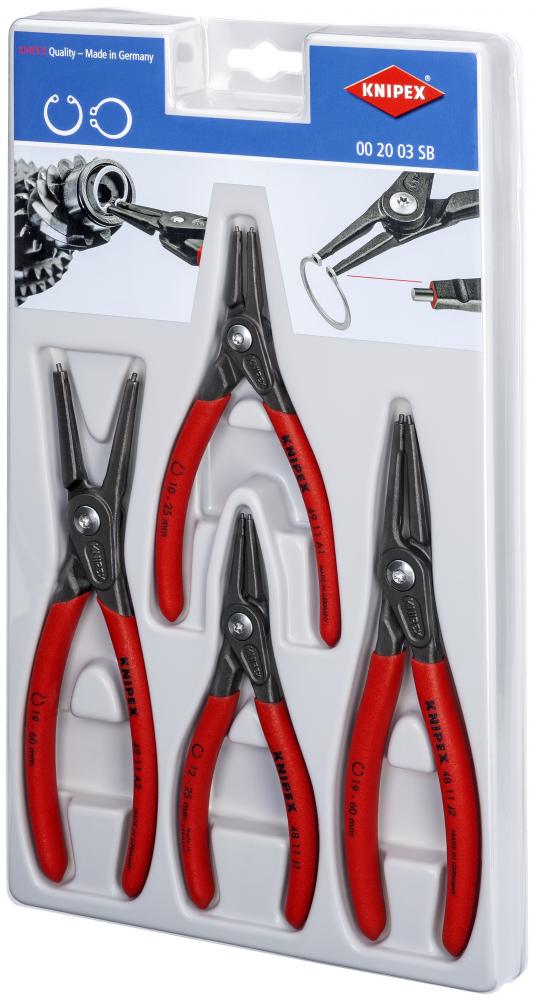

4 Pc Precision Snap Ring Pliers Set
$
146
83
/ 1
- Part Number: 00 20 03 SB
- UPC: 00843221004880
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Info & Guides
Set Includes Part Numbers: 48 11 J1 | 48 11 J2 | 49 11 A1 | 49 11 A2
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Plier Sets
Retaining Ring Plier Sets
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Chemical:
Tris(2,3-dibromopropyl)phosphate
Circlip - External Shaft Size - inches:
25/64" to 1" (49 11 A1); 3/4" to 2 23/64" (49 11 A2)
Circlip - Internal Bore Size - inches:
15/32" to 1" (48 11 J1); 3/4" to 2 23/64" (48 11 J2)
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Data Sheet Filename:
002003sb_en.pdf
DIN:
DIN 5256 C (48 11 J1 and 48 11 J2); DIN 5254 A (49 11 A1 and 49 11 A2)
ECCN:
EAR99
Handle Type:
Non-slip plastic
Harmonized Tariff Code:
8203.20.6030
Included Products/Items:
Color: Red
Item Quantity:
4
Item Weight (lbs):
1.525
Joint Type:
Bolted
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Other Material Type:
Inserted tips: spring steel wire, drawn
Package Height (inches):
0.95"
Package Height inches:
0.95"
Package Length (inches):
12.9"
Package Length inches:
12.9"
Package Weight (lbs):
1.525
Package Weight lbs:
1.525
Package Width (inches):
7.6"
Package Width inches:
7.6"
Packaging Height mm:
30 mm
Packaging Length mm:
350 mm
Packaging Width mm:
185 mm
Prop 65 Conflict:
View
Prop 65 Language Indicator:
View
Prop 65 Warning English:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Grey atramentized
Tip Width:
3/64" (48 11 J1 and 49 11 A1); 5/64" (48 11 J2 and 49 11 A2)
Tool Attributes:
(1) 48 11 J1 5-1/2" Precision Circlip "Snap-Ring" Pliers-Internal Straight, (1) 48 11 J2 7-1/4" Precision Circlip "Snap-Ring" Pliers-Internal Straight, (1) 49 11 A1 5-1/2" Precision Circlip "Snap-Ring" Pliers-External St
Four of KNIPEX best-selling Precision circlip pliers in one kit - includes foam tool storage tray
Heavy duty for continuous operation - up to 10 times longer service life than turned tips
The large supporting surfaces and the position of the tips make it more difficult for the rings to fly off
Tips are made of high-density spring steel and offer a high level of protection against excessive stress and strain - great for removing rings that are stuck
Tips are non-detachable
Tool Height mm:
13 mm
Tool Length mm:
310 mm
Tool Weight grams:
685 g
Tool Width mm:
185 mm
Unit Of Measure:
Set
UNSPSC:
27112140
UNSPSC Number:
27112140
UOM Qty:
4
UPC Code:
843221004880
Other Details

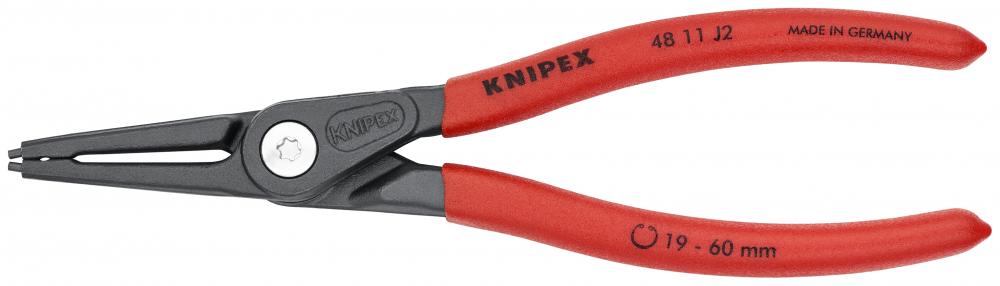

48 11 J1 (5 1/2") and 48 11 J2 (7 1/4") - Internal Precision Snap Ring Pliers
49 11 A1 (5 1/2") and 49 11 A2 (7 1/4") - External Precision Snap Ring Pliers
Bolted joint: precise, zero-backlash operation of pliers
Circlips are held securely, large contact faces and the position of the tips make it difficult for the circlip to fly off
Each tool cavity is precisely manufactured for each of the four tools for easy tool location and storage
For fitting snap rings into bores, ranging from 15/32" to 2 23/64"
For fitting snap rings on shafts, ranging from 25/64" to 2 23/64"
Heavy-duty continuous operation: up to 10 times longer service life than turned tips
Inserted straight tips for reliable work
Plastic tray can be used in workbenches or cabinet drawers
Precision external circlip pliers for installing or removing circlips on shafts
Precision internal circlip pliers for installing or removing circlips in bore holes
The KNIPEX Precision Snap Ring Pliers Set is a specialized tools designed for precise and delicate work with snap rings or circlips. The set has both internal and external snap ring pliers, providing versatility for different tasks. These pliers feature sl
