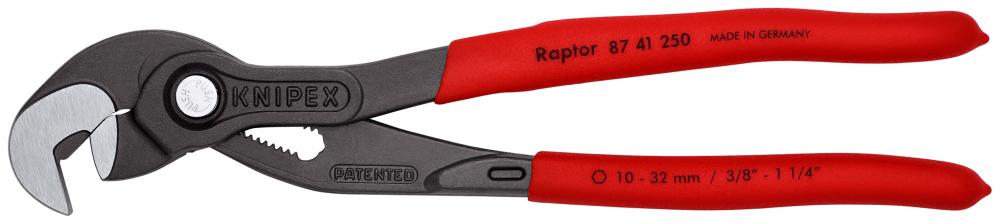

![10" Raptor™ Pliers](/vendors/8243/large/8741250-00-3.jpg "10" Raptor™ Pliers")

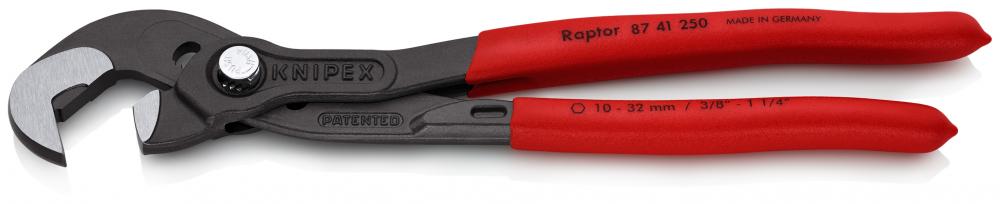

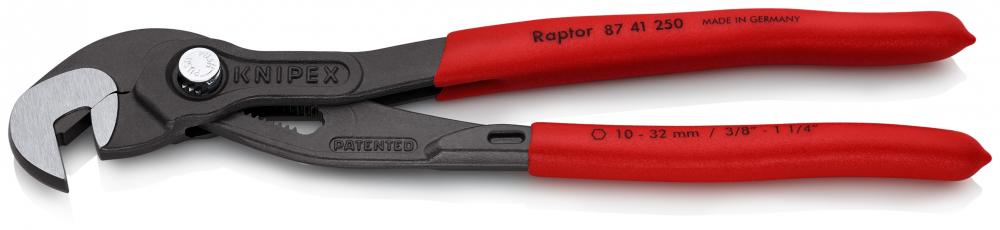

10" Raptor™ Pliers
$
63
31
/ 1
- Part Number: 87 41 250 SBA
- UPC: 00843221000165
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Tongue and Groove Pliers
1000 Volt Insulated:
No
Accessory Part Number:
87 09 250 V01
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
ECCN:
EAR99
Gripping Surface:
Smooth
Handle Type:
Non-slip plastic
Harmonized Tariff Code:
8204.12.0000
Included Products/Items:
Gripping Surface: Smooth
Item Height (inches):
3/4"
Item Height inches:
3/4"
Item Length (inches):
10
Item Length inches:
10"
Item Quantity:
1
Item Weight (lbs):
0.75
Item Weight lbs:
0.75
Item Width (inches):
1 7/8"
Item Width inches:
1 7/8"
Joint Type:
Box-joint
Joint Type 2:
Adjustable
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex:
3/8" to 1 1/4"
Max Jaw Opening - Working Capacity:
3/8" to 1 1/4"
Max Jaw Opening Hex:
3/8" to 1 1/4"
Nomintal Length mm:
250
Number of Adjustment Positions:
15
Other Surface Finish:
Grey atramentized
Package Height (inches):
0.85"
Package Height inches:
0.85"
Package Length (inches):
13.35"
Package Length inches:
13.35"
Package Weight (lbs):
0.79
Package Weight lbs:
0.79
Package Width (inches):
3.55"
Package Width inches:
3.55"
Packaging Height mm:
92 mm
Packaging Length mm:
344 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Spare Part:
87 09 01
Sub Brand Name:
Raptor™
Surface Finish:
Polished jaws
Tool Attributes:
15 fine adjustments of optimum adaptation to different size workpieces and a comfortable gripping position.

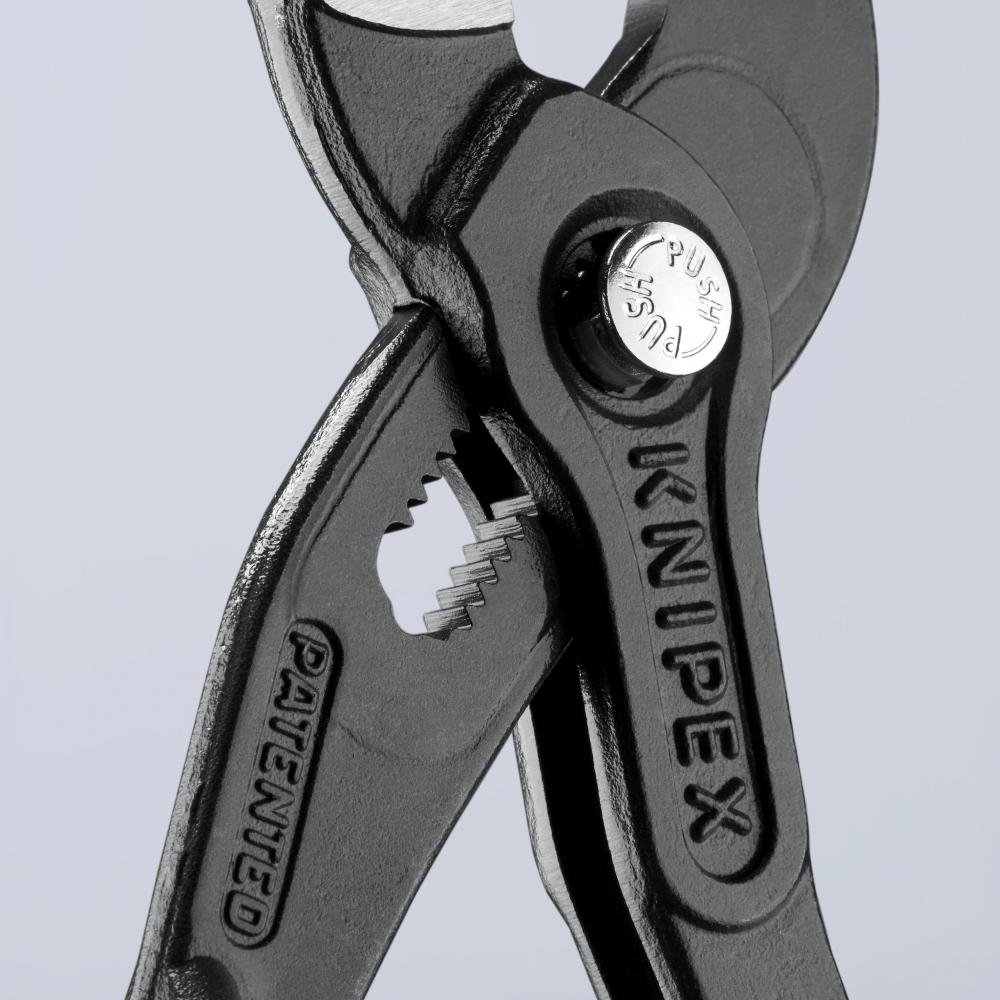

Adjustment at the touch of a button directly on the workpiece, one-hand operation.
Box-joint design: high stability because of double guide.
Chrome vanadium electric steel; forged, multi stage oil-hardened.
Combines the convenience of the push-button adjustment on the workpiece and the function of an all-purpose tightening tool.
Favorable lever action: optimum transmission of force.

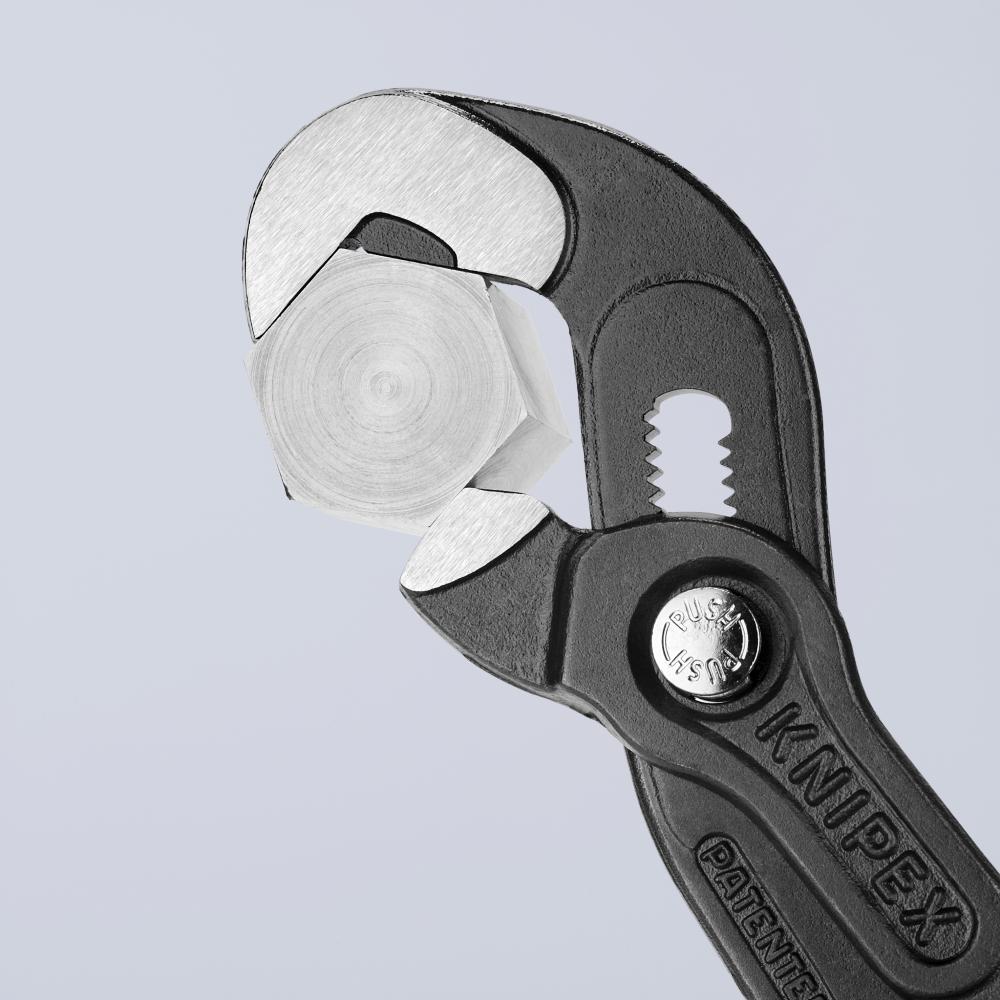

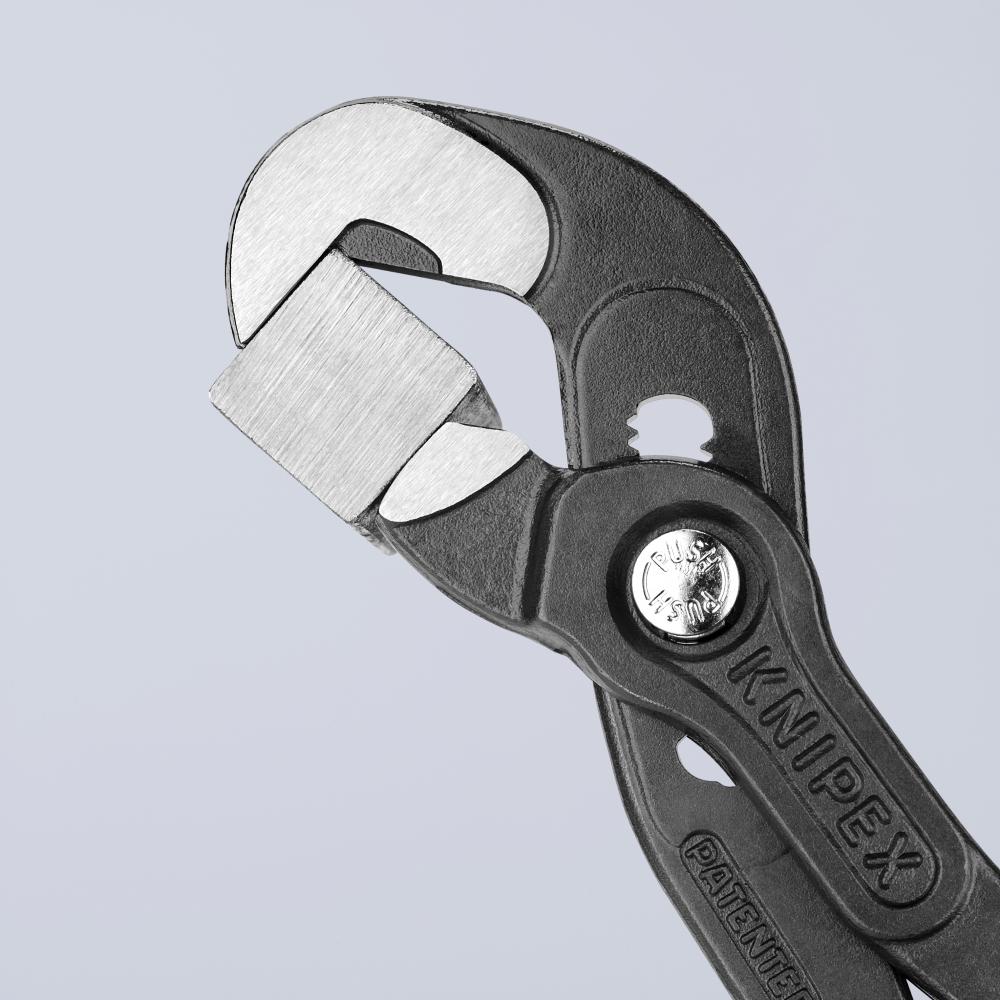

For use with inch and metric nuts and screws with widths across flats from 3/8" to 1 1/4" - self-locking in the range from 11/16": no slipping off the workpiece.
Ideal for work on vehicle brake systems.
Pinch guard prevents operators' fingers being pinched.

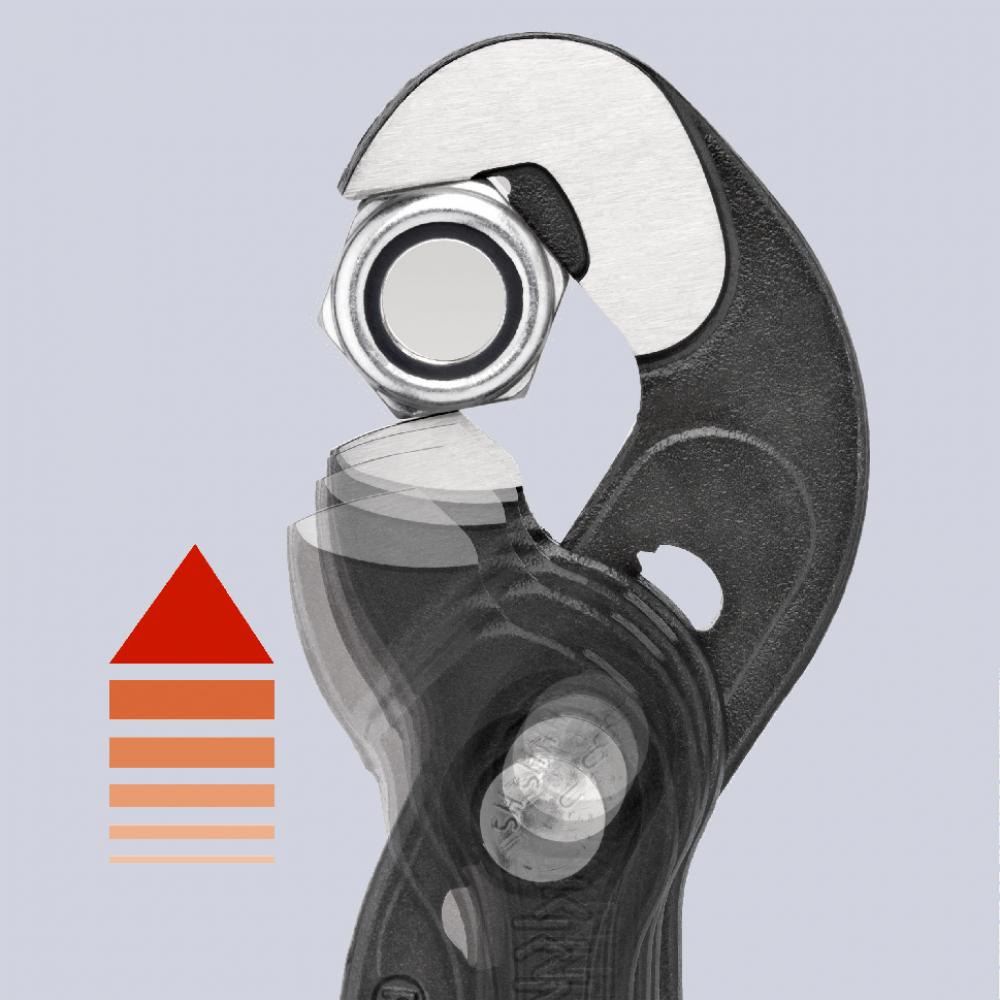

Quick tightening of nuts and bolts using ratchet action.

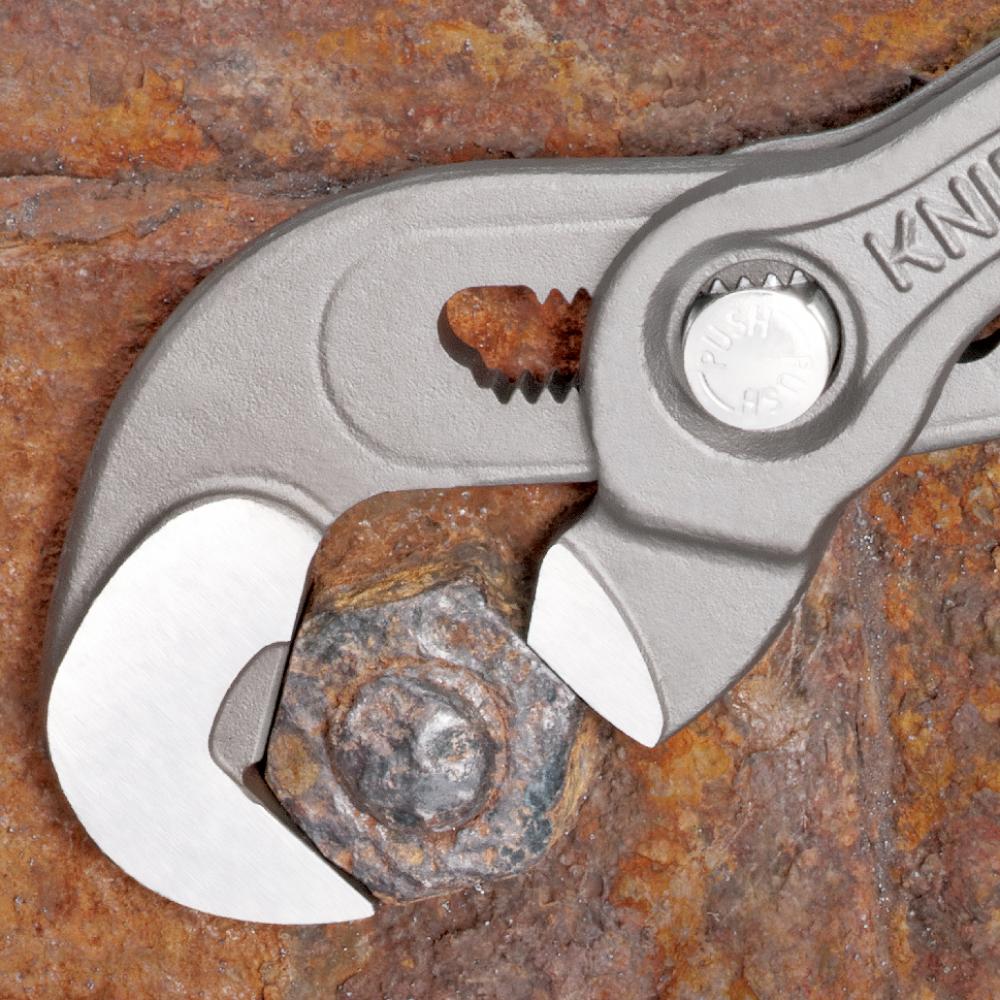

Reliable and tight gripping of rounded, rusty or overly painted nuts and screws.
Reliable catching of the hinge bolt: no unintentional shifting.

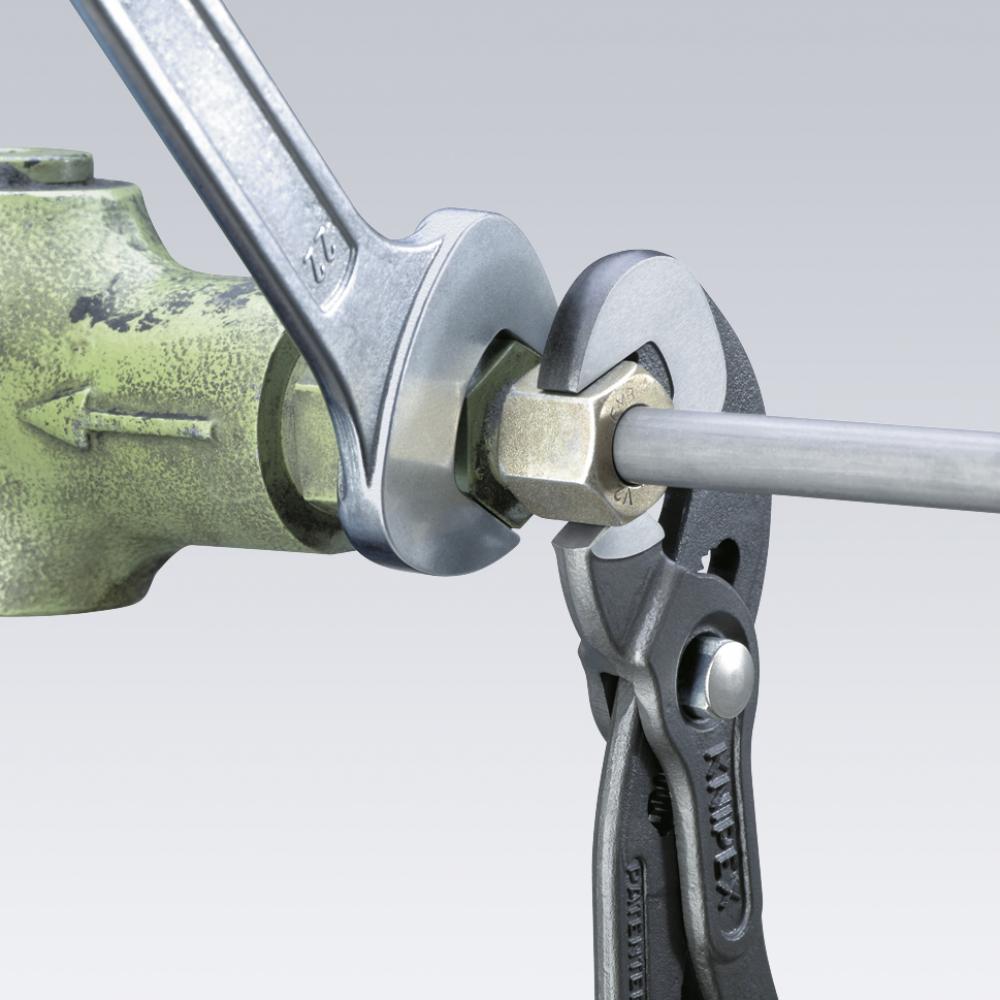

Replaces a set of wrenches, ideal for tightening locknuts.
Tool Height mm:
19 mm
Tool Weight grams:
350 g
Tool Width mm:
110 mm
Unit Of Measure:
Each
UNSPSC:
27112112
UNSPSC Number:
27112112
UOM Qty:
1
UPC Code:
843221000165
Other Details
15 fine adjustments of optimum adaptation to different size workpieces and a comfortable gripping position
Adjustment at the touch of a button directly on the workpiece, one-hand operation
Box-joint design: high stability because of double guide
Chrome vanadium electric steel; forged, multi stage oil-hardened
Combines the convenience of the push-button adjustment on the workpiece and the function of an all-purpose tightening tool
Favorable lever action: optimum transmission of force
For use with inch and metric nuts and screws with widths across flats from 3/8" to 1 1/4" - self-locking in the range from 11/16": no slipping off the workpiece

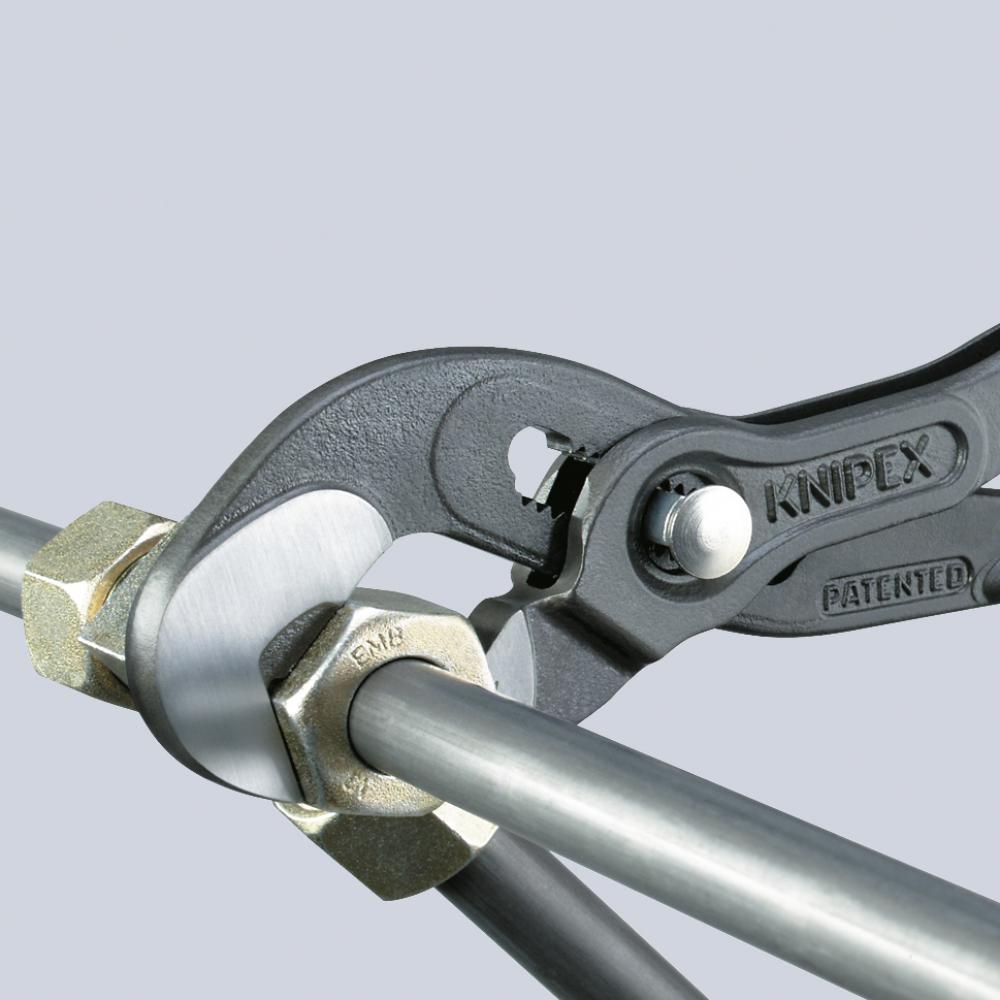

Ideal for work on vehicle brake systems
Pinch guard prevents operators' fingers being pinched
Quick tightening of nuts and bolts using ratchet action
Reliable and tight gripping of rounded, rusty or overly painted nuts and screws
Reliable catching of the hinge bolt: no unintentional shifting
Replaces a set of wrenches, ideal for tightening locknuts
