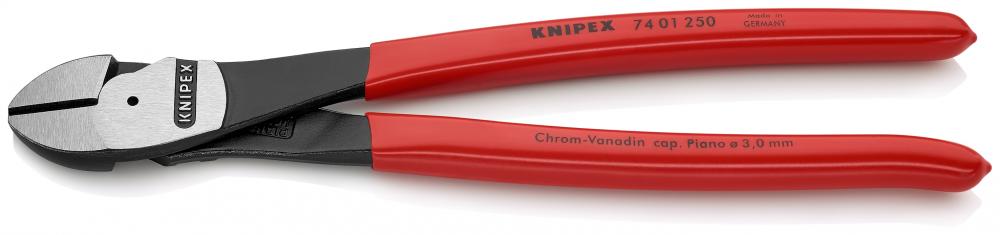

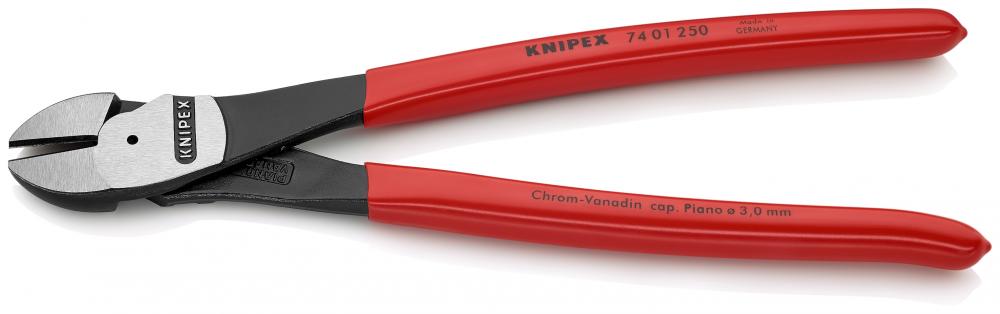

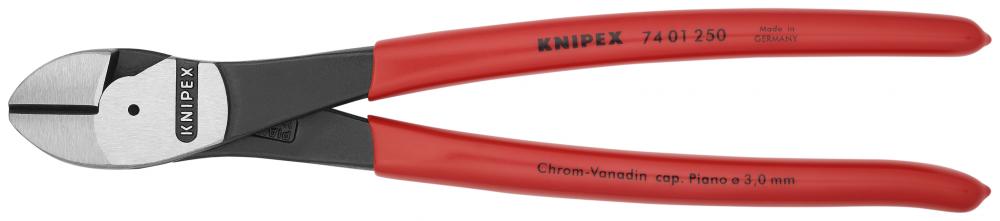

10" High Leverage Diagonal Cutters
$
70
14
/ 1
- Part Number: 74 01 250 SBA
- UPC: 00843221000264
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Diagonal Cutting Pliers
1000 Volt Insulated:
No
Brand Name:
KNIPEX
Color:
Red
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
Cutting Capacity - Hard Wire (Steel Wire):
9/64"
Cutting Capacity - Medium Hard Wire (Nail):
3/16"
Cutting Capacity - Piano Wire:
1/8"
Cutting Capacity Hard Wire Steel Wire:
9/64"
Cutting Capacity Medium Hard Wire Nail:
3/16"
Cutting Capacity Piano Wire:
1/8"
Cutting Edge HRC:
Approx. 64 HRC
Cutting Edge Shape:
Bevel
ECCN:
EAR99
Handle Type:
Plastic coating
Harmonized Tariff Code:
8203.20.6060
Included Products/Items:
Surface Finish: Polished
Item Height (inches):
3/4"
Item Height inches:
3/4"
Item Length (inches):
10
Item Length inches:
10"
Item Quantity:
1
Item Weight (lbs):
0.9
Item Weight lbs:
0.9
Item Width (inches):
2 1/16"
Item Width inches:
2 1/16"
Joint Type:
Forged-in axle
Joint Type 2:
Fixed Joint
Material Type:
Chrome vanadium heavy-duty steel, forged, oil-hardened
Nomintal Length mm:
250
Other Surface Finish:
Black atramentized
Package Height (inches):
0.85"
Package Height inches:
0.85"
Package Length (inches):
12.65"
Package Length inches:
12.65"
Package Weight (lbs):
0.975
Package Weight lbs:
0.975
Package Width (inches):
4.1"
Package Width inches:
4.1"
Packaging Height mm:
92 mm
Packaging Length mm:
344 mm
Packaging Width mm:
115 mm
Prop 65 Conflict:
View
Reach:
does not contain SVHC
RoHS:
not applicable
Surface Finish:
Polished
Tool Attributes:

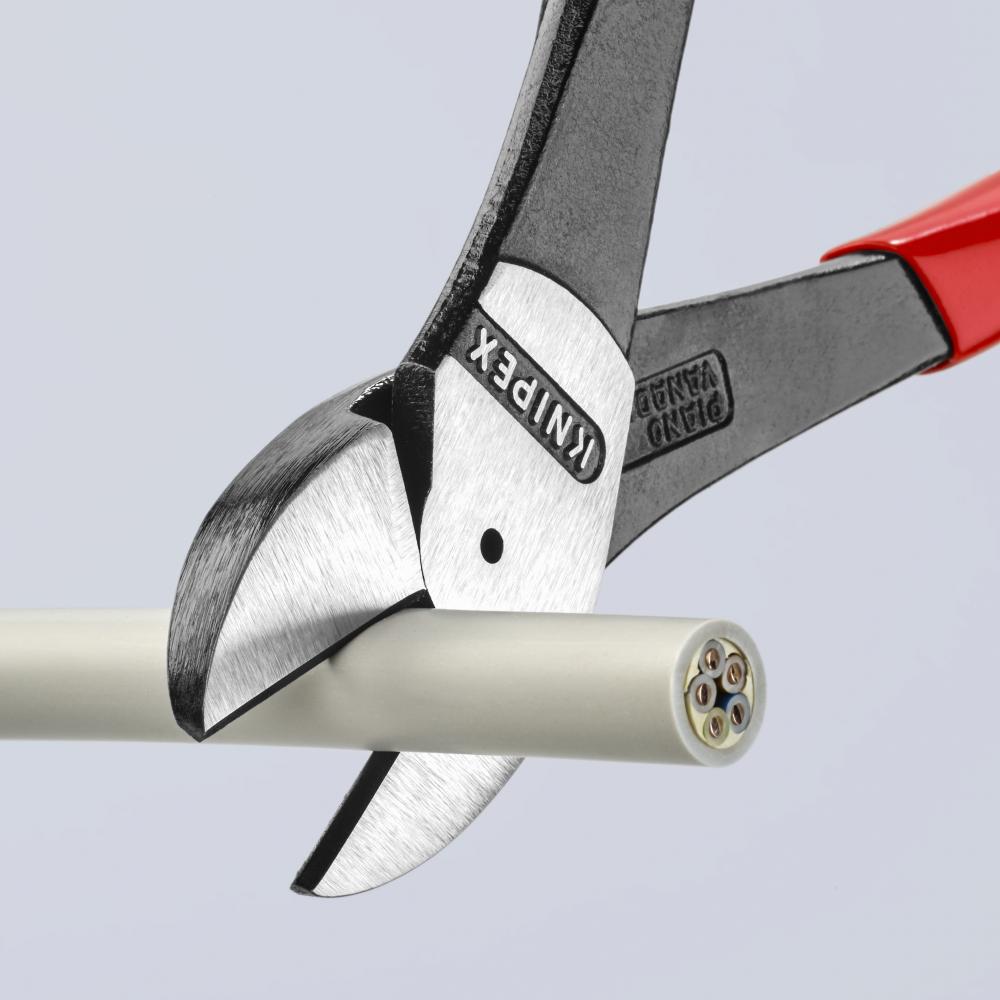

10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm².
20% less effort required compared to conventional diagonal cutters of the same length.
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.
For very tough, continuous use.
Forged-on axle for heavy-duty work.
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio.

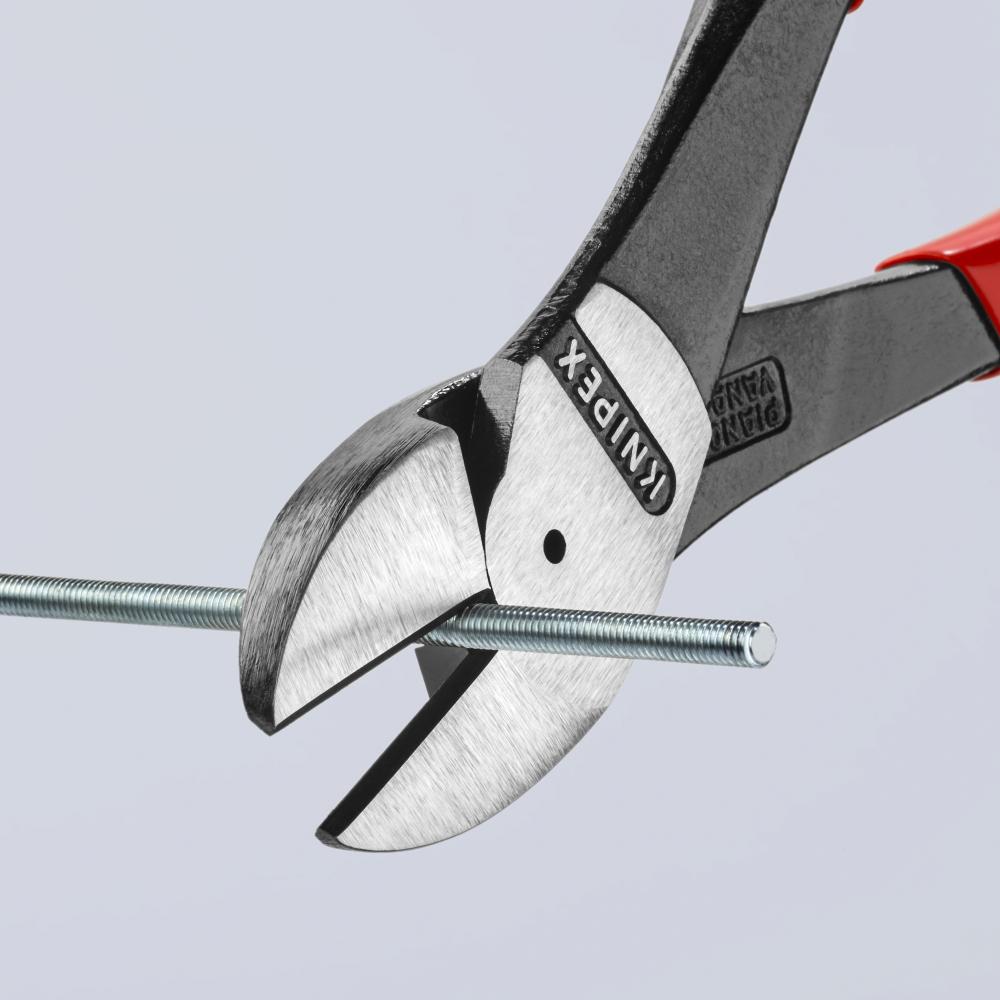

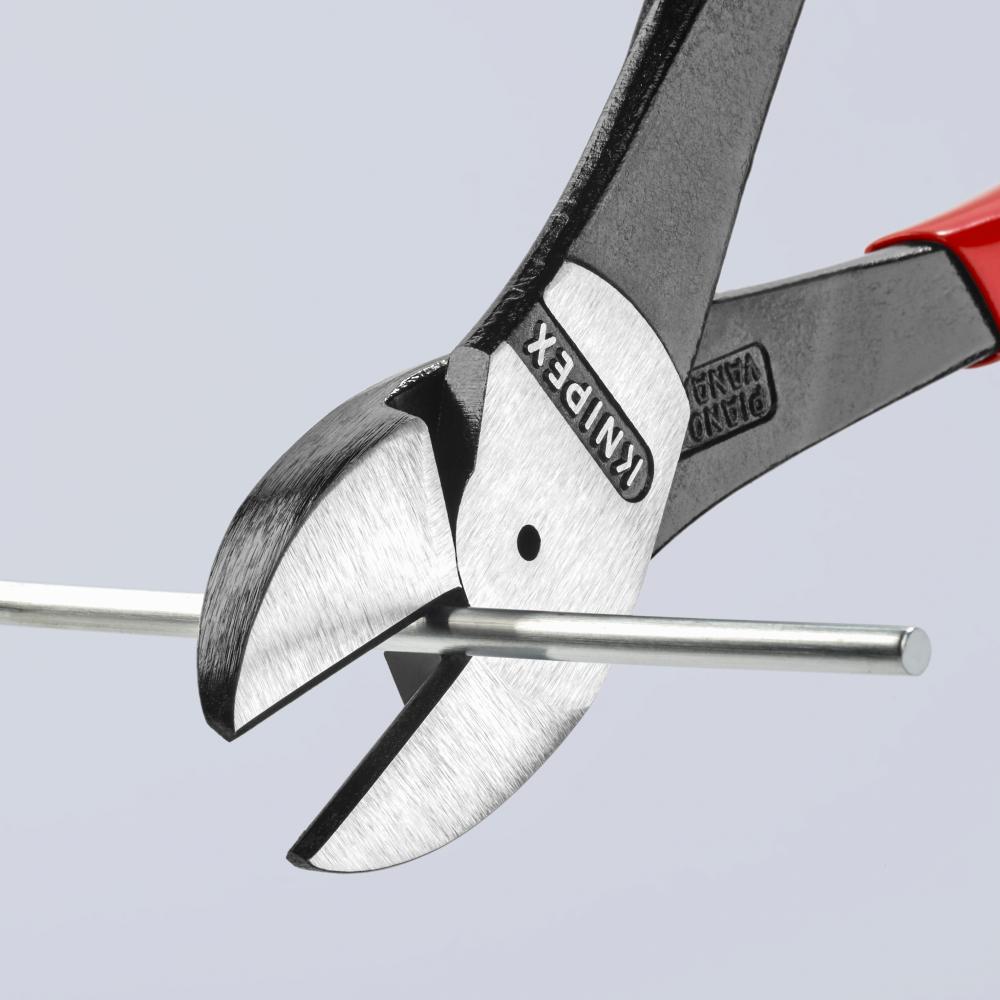

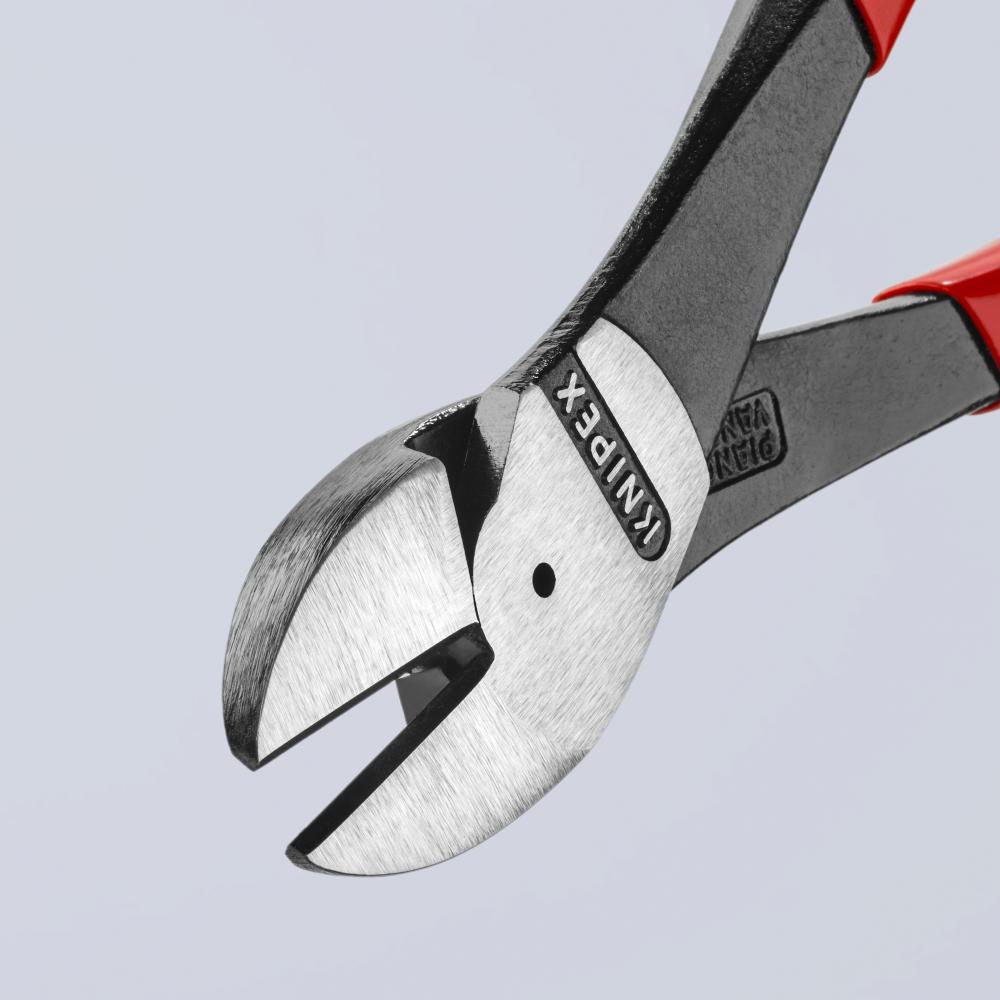

Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire.
Tool Height mm:
92 mm
Tool Weight grams:
390 g
Tool Width mm:
85 mm
Unit Of Measure:
Each
UNSPSC:
27112114
UNSPSC Number:
27112114
UOM Qty:
1
UPC Code:
843221000264
Other Details
10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
20% less effort required compared to conventional diagonal cutters of the same length
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
For very tough, continuous use
Forged-on axle for heavy-duty work
High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
