![10" Cobra® Water Pump Pliers-1000V Insulated](/vendors/8243/large/8728250US4.jpg "10" Cobra® Water Pump Pliers-1000V Insulated")

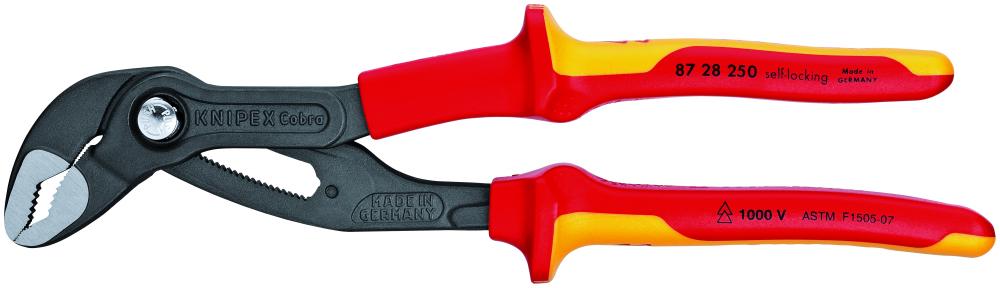

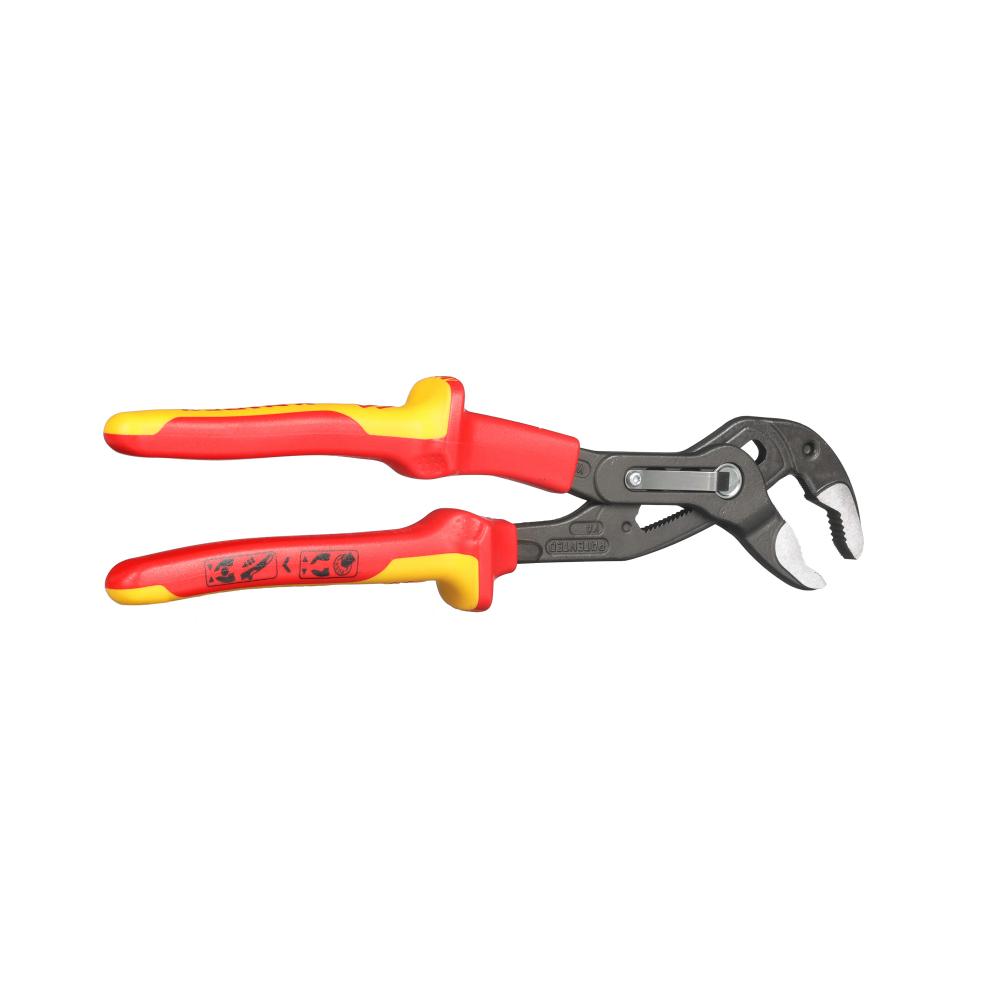

10" Cobra® Water Pump Pliers-1000V Insulated
$
93
18
/ 1
- Part Number: 87 28 250 SBA
- UPC: 00843221010560
- Availability: Contact Ammo Power for Stock Quantities 604-270-2666
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Info & Guides
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Pliers
Industrial Subtype:
Tongue and Groove Pliers
1000 Volt Insulated:
Yes
Accessory Part Number:
87 09 250 V01
Brand Name:
KNIPEX
Color:
Red/Yellow
Country of Origin:
Germany
Country of Origin 2:
DE
Country of Origin 3:
DEU
ECCN:
EAR99
Gripping Surface:
Serrated
Handle Length:
8"
Handle Type:
1000V Insulated, multi-component, ASTM
Harmonized Tariff Code:
8204.12.0000
Included Products/Items:
Gripping Surface: Serrated
Item Height (inches):
1.2"
Item Height inches:
1.2"
Item Length (inches):
10
Item Length inches:
10"
Item Quantity:
1
Item Weight (lbs):
0.875
Item Weight lbs:
0.875
Item Width (inches):
2 7/8"
Item Width inches:
2 7/8"
Joint Type:
Box-joint
Joint Type 2:
Adjustable
Material Type:
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex:
1 3/4"
Max Jaw Opening - Round pipe:
2"
Max Jaw Opening Hex:
1 3/4"
Max Jaw Opening Round Pipe:
2"
Nomintal Length mm:
250
Number of Adjustment Positions:
24
Other Surface Finish:
Grey atramentized
Package Height (inches):
1.4"
Package Height inches:
1.4"
Package Length (inches):
13.6"
Package Length inches:
13.6"
Package Weight (lbs):
0.96
Package Weight lbs:
0.96
Package Width (inches):
3.8"
Package Width inches:
3.8"
Packaging Height mm:
93 mm
Packaging Length mm:
369 mm
Packaging Width mm:
165 mm
Prop 65 Conflict:
View
Reach:
No
RoHS:
No
Spare Part:
87 09 01
Sub Brand Name:
Cobra®
Surface Finish:
Polished jaws
Teeth Hardness HRC:
Approx. 61 HRC
Tool Attributes:
24 fine adjustments for optimum adaptation to different workpiece sizes and comfortable gripping position.
Box-joint design: high stability because of double guide.
Chrome vanadium electric steel; forged, multi stage oil-hardened.
Good access to the workpiece due to slim size in the head and joint area.
Gripping surfaces with special hardened teeth, teeth hardness (approx. 61 HRC): low wear and reliable gripping.
Opening at the touch of a button apart from the workpiece.
Pinch guard prevents operators' fingers being pinched.
Quick adjustment by shifting the jaw directly on the workpiece - fast, secure and comfortable handling.
Self-locking on pipes and nuts - no slipping off the workpiece and low hand force required.
Tool Height mm:
87 mm
Tool Length mm:
250 mm
Tool Weight grams:
350 g
Tool Width mm:
165 mm
Unit Of Measure:
Each
UNSPSC:
27112112
UNSPSC Number:
27112112
UOM Qty:
1
UPC Code:
843221010560
Other Details
1000V multi-component grips, ASTM F1505-tested
24 fine adjustments for optimum adaptation to different workpiece sizes and comfortable gripping position
Box-joint design: high stability because of double guide
Chrome vanadium electric steel; forged, multi stage oil-hardened
Good access to the workpiece due to slim size in the head and joint area
Gripping surfaces with special hardened teeth, teeth hardness (approx. 61 HRC): low wear and reliable gripping
Opening at the touch of a button apart from the workpiece
Pinch guard prevents operators' fingers being pinched
Quick adjustment by shifting the jaw directly on the workpiece - fast, secure and comfortable handling
Self-locking on pipes and nuts - no slipping off the workpiece and low hand force required
The adjustment action to adapt to the workpiece is easy and reliable with the KNIPEX Cobra® Insulated: place the upper gripping jaw of the opened pliers on the workpiece, push pliers to close, done!
