![5/16",3/8",7/16",1/2" Depth Rabbeting Bit with Bearings](/vendors/7716/large/32-502_Main-Image.jpg "5/16",3/8",7/16",1/2" Depth Rabbeting Bit with Bearings")

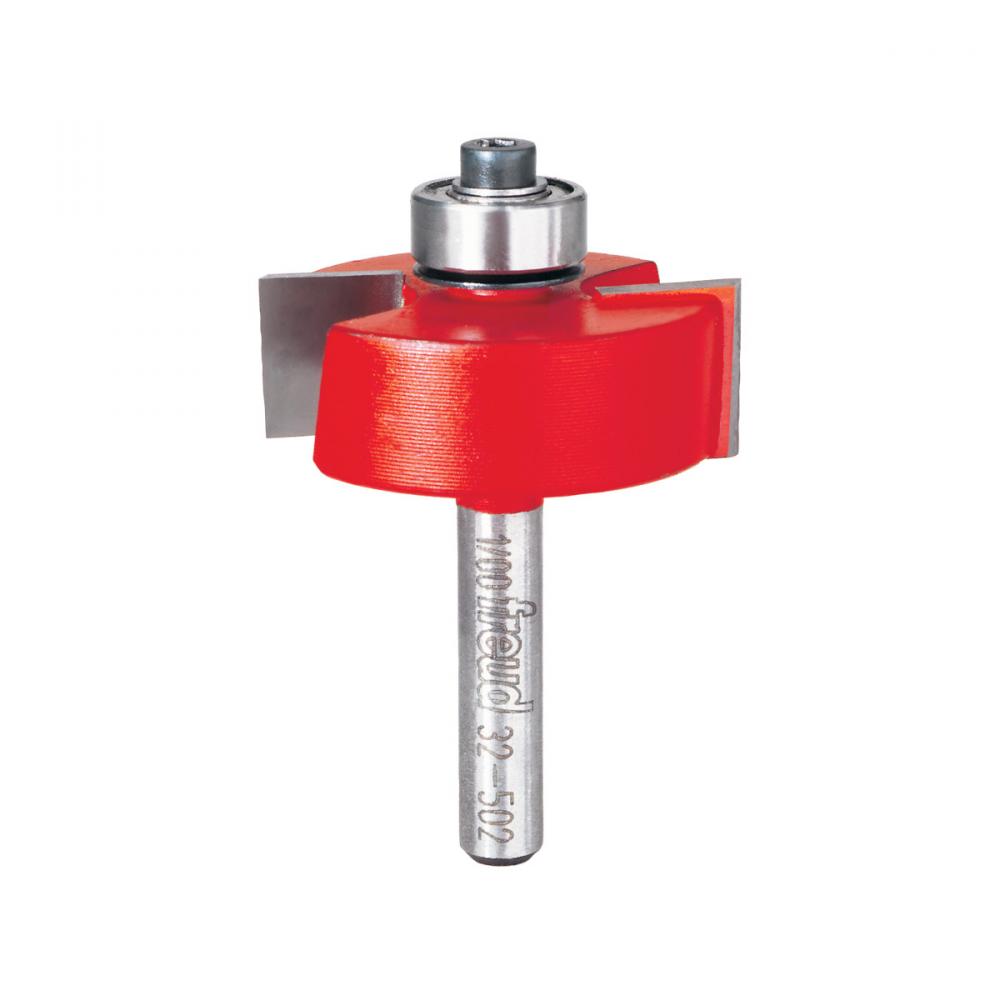

5/16",3/8",7/16",1/2" Depth Rabbeting Bit with Bearings
$
52
34
/ 1
- Part Number: 32-502
- UPC: 00008925383185
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Freud Rabbeting Sets make versatile Rabbeting bits even more useful in the shop by offering a wide range of different depths of cut. With interchangeable bearings to cut rabbets of different depths, these sets provide a fast, easy way to adjust the size of the profile. Use them to make strong rabbeted joints, cut recesses to let in the back panels of cabinets, or create an interesting detail on built-up molding. Use in hand-held or table-mounted routers to cut hard or soft wood, plywood or composite material. 32-504, 32-524, and 32-526 can also be used as flush cutting trim bits. Wrench included
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Routers and Bits
Industrial Subtype:
Profile Router Bits
Body Copy:
Freud Rabbeting Sets make versatile Rabbeting bits even more useful in the shop by offering a wide range of different depths of cut. With interchangeable bearings to cut rabbets of different depths, these sets provide a fast, easy way to adjust the size o
Bore/Shank:
1/4
Buy Qty Multiple:
1
Carbide Height (h):
1/2"
Cut Depth (C):
5/16",3/8",7/16",1/2"
Each Item Depth:
1.5
Each Item Height:
5.88
Each Item Weight:
0.3
Each Item Width:
5.88
List Price:
62.62
Max RPM:
16000
Number of Cutters:
2
Overall Dia. (D):
1-3/8"
Overall Length (H):
2-1/4"
Set Contents:
62-102,62-104,62-113,62-114,62-402,62-313,62-311
Shank Dia. (A):
1/4"
UPC Number:
008925383185
Other Details
32-504, 32-524, and 32-526 can also be used as flush cutting trim bits
Cuts all composition materials, plywoods, hardwoods, and softwoods
Each set includes interchangeable bearings and a wrench to cut multiple depths with a single bit
Great for furniture makers, cabinetmakers and carpenters
Use on hand-held and table-mounted portable routers
