![1/4" (Dia.) Up Spiral Bit](/vendors/7716/large/75-102_Main-Image.jpg "1/4" (Dia.) Up Spiral Bit")

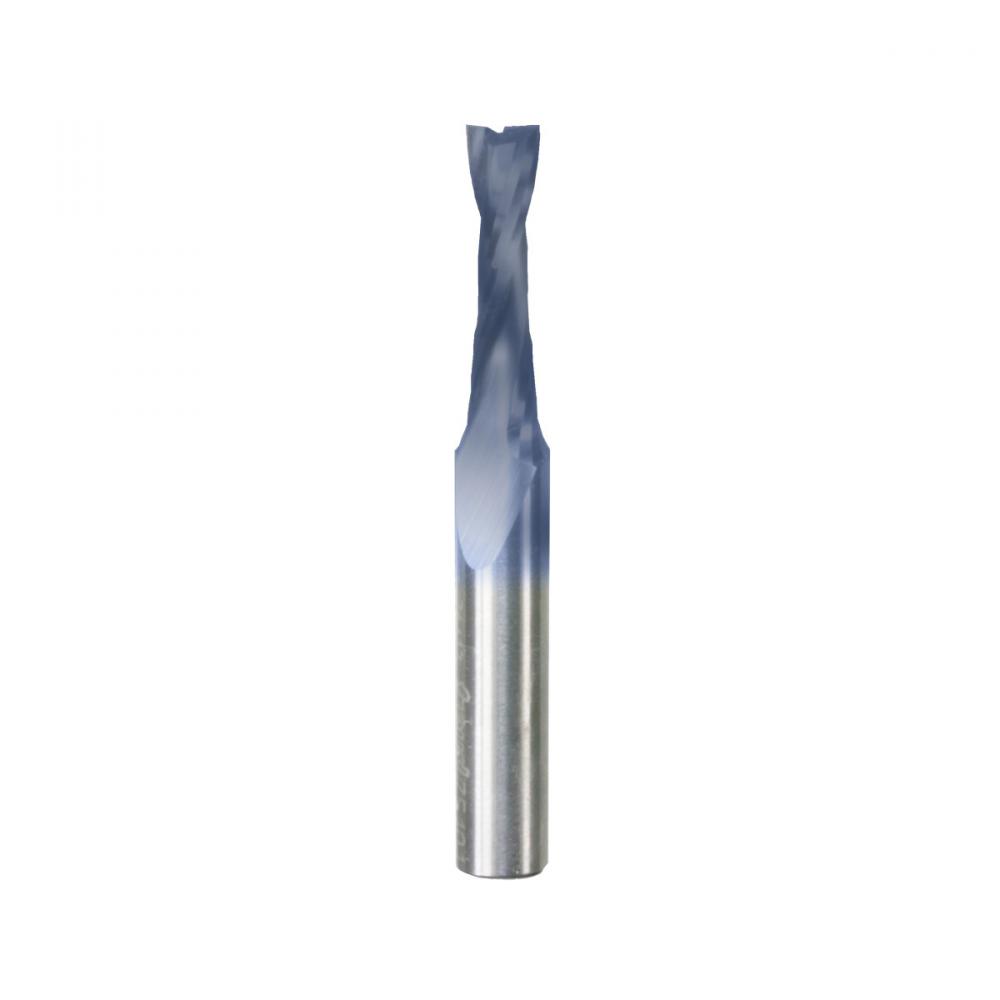

1/4" (Dia.) Up Spiral Bit
$
30
82
/ 1
- Part Number: 75-102
- UPC: 00008925390022
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut quality on the bottom surface of the material. Use these bits in CNC, hand-held or table-mounted routers.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Routers and Bits
Industrial Subtype:
Spiral Flute
Body Copy:
Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut q
Bore/Shank:
1/4
Buy Qty Multiple:
1
Carbide Height (h):
1"
Each Item Depth:
0.75
Each Item Height:
4.63
Each Item Weight:
0.1
Each Item Width:
2.5
List Price:
35.13
Max RPM:
24000
Number of Cutters:
2
Overall Dia. (D):
1/4"
Overall Length (H):
2-1/2"
Shank Dia. (A):
1/4"
UPC Number:
008925390022
Other Details
Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Black I.C.E. coating for cool cutting edge and superior chip evacuation
Fast chip removal with excellent quality and long life
Freud Premier Solid Carbide
Use in CNC, hand-held and table-mounted routers
