![1/4" (Dia.) Down Spiral Bit](/vendors/7716/large/76-102_Main-Image.jpg "1/4" (Dia.) Down Spiral Bit")

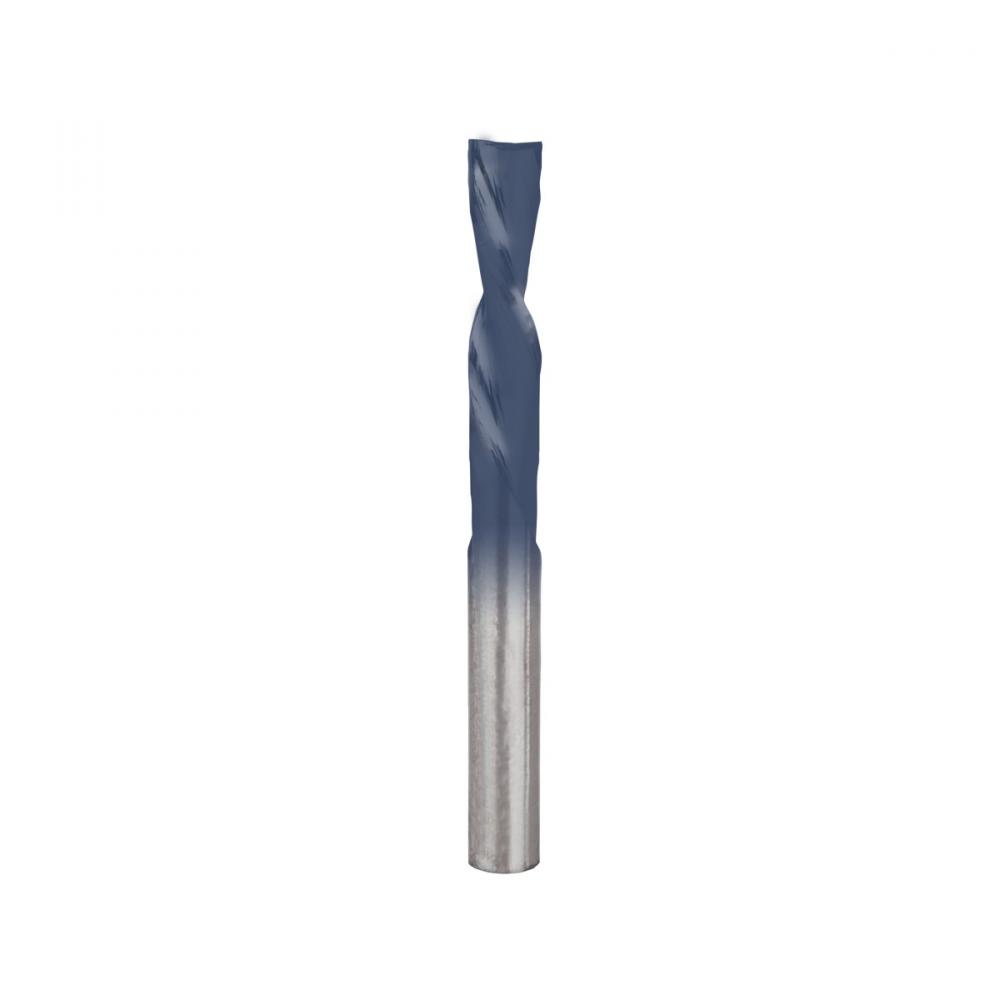

1/4" (Dia.) Down Spiral Bit
$
33
18
/ 1
- Part Number: 76-102
- UPC: 00008925390060
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Down spiral bits are a great choice for grooves and dadoes in single-sided veneers and laminates where chip removal is not a problem, or for through-cuts where finish quality on the top surface is the primary consideration. Also cuts well in solid wood. Ideal for use in CNC routers. When used in hand-held or table-mounted routers, use care to keep router and work piece under control.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Routers and Bits
Industrial Subtype:
Spiral Flute
Body Copy:
Down spiral bits are a great choice for grooves and dadoes in single-sided veneers and laminates where chip removal is not a problem, or for through-cuts where finish quality on the top surface is the primary consideration. Also cuts well in solid wood. I
Bore/Shank:
1/4
Buy Qty Multiple:
1
Carbide Height (h):
1"
Each Item Depth:
0.75
Each Item Height:
4.63
Each Item Weight:
0.08
Each Item Width:
2.5
List Price:
39.71
Max RPM:
24000
Number of Cutters:
2
Overall Dia. (D):
1/4"
Overall Length (H):
2-1/2"
Shank Dia. (A):
1/4"
UPC Number:
008925390060
Other Details
Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Black I.C.E. coating for cool cutting edge and superior chip evacuation
Chip free cuts on top surface of laminates and veneer panels
Freud Premier Solid Carbide
Use in CNC, hand-held and table-mounted routers
