![1/2" (Dia.) Mortising Bit](/vendors/7716/large/16-100_Main-Image.jpg "1/2" (Dia.) Mortising Bit")

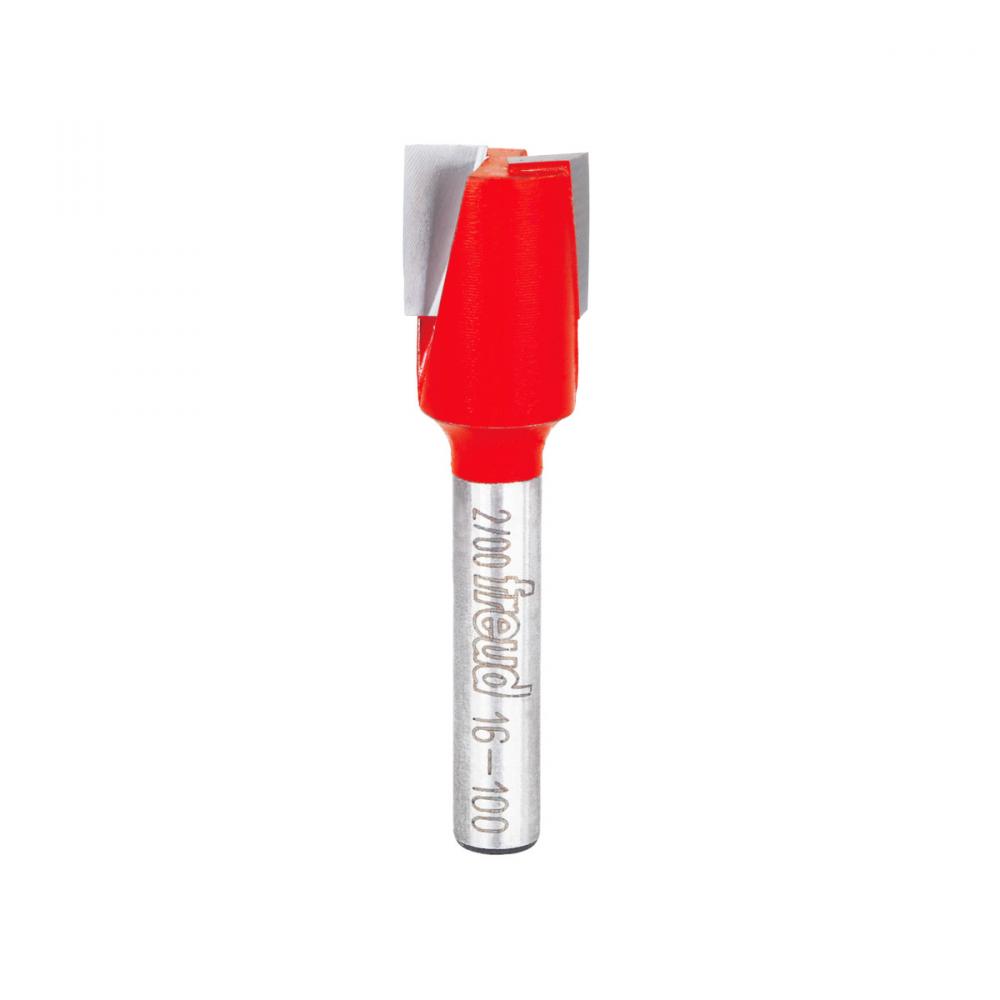

1/2" (Dia.) Mortising Bit
$
21
26
/ 1
- Part Number: 16-100
- UPC: 00008925380290
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware, or cutting grooves and dadoes. These bits are designed with deep center gullets for maximum material removal without chip loading. Use in any CNC or portable router.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Routers and Bits
Industrial Subtype:
Straight Flute Drill Bits
Profile Router Bits
Body Copy:
Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers dow
Bore/Shank:
1/4
Buy Qty Multiple:
1
Carbide Height (h):
1/2"
Each Item Depth:
0.75
Each Item Height:
4.63
Each Item Weight:
0.08
Each Item Width:
2.5
List Price:
25.44
Max RPM:
24000
Number of Cutters:
2
Overall Dia. (D):
1/2"
Overall Length (H):
2"
Shank Dia. (A):
1/4"
UPC Number:
008925380290
Other Details
Available with top bearings to suit popular routing jigs
Deep center gullets for fast chip removal
Down shear design on most bits for clean top surfaces
Freud Perma-SHIELD® Coating
Use on CNC, hand-held and table-mounted portable routers
