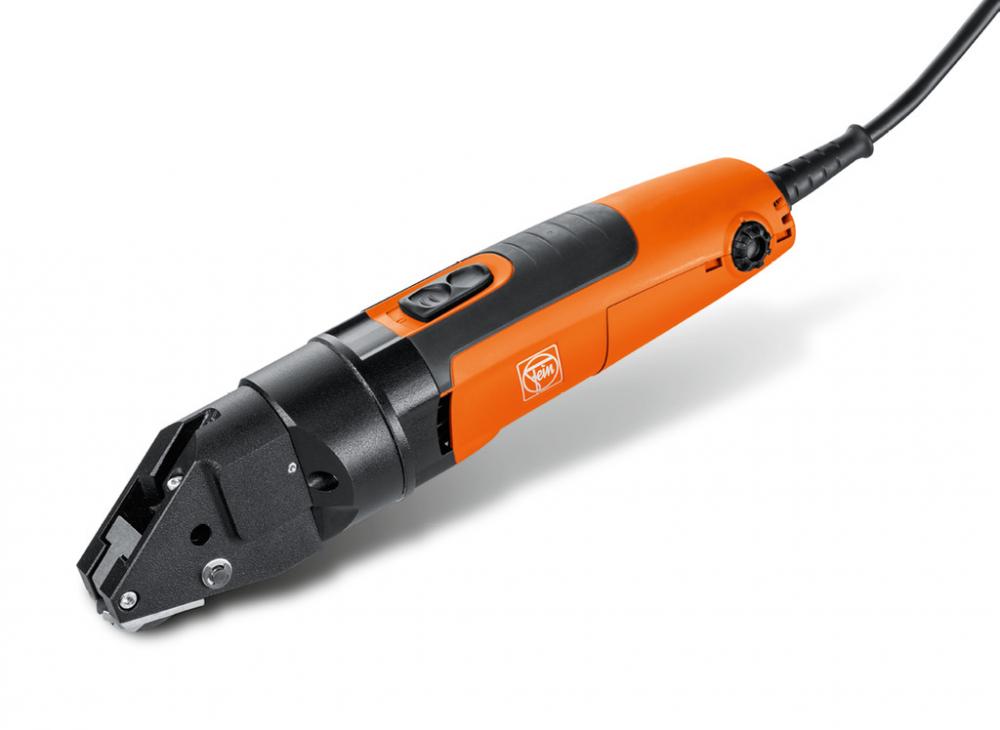

Slitting Shear up to 14 gauge|BSS 2.0 E
Call For Price
- Part Number: 72303361090
- UPC: 04014586874838
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (3)
Product Overview
Slitting Shear up to 14 gauge|BSS 2.0 E|High-performance slitting shears for stainless steel processing, spiral seam pipes and profiles.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Shears
Industrial Subtype:
Corded Shears
Cable with plug:
16.4 [5] ft[m]
Classification eClass 5.1.4:
21050904
Classification ETIM 8.0:
EC001364
Classification proficlass 7.0:
AAC312c002
COO:
DE
Country of origin:
DE
Cutting speed:
6.6 [2] - 13.1 [4] ft/min[m/min]
Cutting width:
1/4 [5] in[mm]
delivery:
1 cutter blade|1 pair of cutting bars
design type:
BSS 2.0 E
Gross weight (g):
2.871,60
Height (mm):
10.00
Immersion dia.:
1/2 [12] in[mm]
Length (mm):
405,00
logistics data:
Gross weight 2.871,60|Net weight 2.871,60|Volume 10.530,00|Length 405,00|Width 260,00|Height 100,00
Machine Type:
Corded
Model:
BSS 2.0 E
Net weight (g):
2.871,60
Non-ferrous metals up to 36000 lbf in²:
0.1181 [3.0] in[mm]
Power consumption:
350 W
Power output:
210 W
Radius of smallest curve:
9-3/4 [245] in[mm]
Statistical commodity number:
84672985
Steel 116000 lbf in²:
0.0512 [1.3] in[mm]
Steel 58000 lbf in²:
0.0787 [2.0] in[mm]
Steel 87000 lbf in²:
0.0591 [1.5] in[mm]
Strokes:
1,300 - 2,600 spm
Technical attributes:
Power consumption 350 W|Power output 210 W|Strokes 1,300 - 2,600 spm|Cutting speed 6.6 [2] - 13.1 [4] ft/min[m/min]|Steel 56,000 lbf/in² 2 mm|Steel 84,000 lbf/in² 2 mm|Steel 112,000 lbf/in² 1 mm|Non-ferrous metals up to 35,000 lbf/in² 11 [3.0] gauge[
Volume (cm³):
10.53
Weight:
3.75 [1.70] lbs[kg]
Weight (net) (g):
2871.6
Wide (mm):
26.00
width (mm):
260
Other Details
16 ft. [5 m] cable.
Best suited for trimming and cutting.
Clean swarf removal prevents injuries or scratches on workpieces.
Cutting blade with outstanding service life.
Durable cutting head for stationary use. The tool can be easily clamped into a vice.
Ideal for trimming profiled sections.
Left and right curve cuts and distortion-free cutting possible with one continuous chip.
Motor with outstanding performance and durability.
Powerful motor with enough torque even for the most difficult jobs. Suitable for spiral-seam pipes with connecting folds 4 x 1/32 in [4 x 0.75 mm].
Stainless steel up to 16 gauge [1.5 mm].
The high-strength blades make it ideal for stiffening profiles in drywall work and cuts in stainless steel.
Wide range of accessories.
