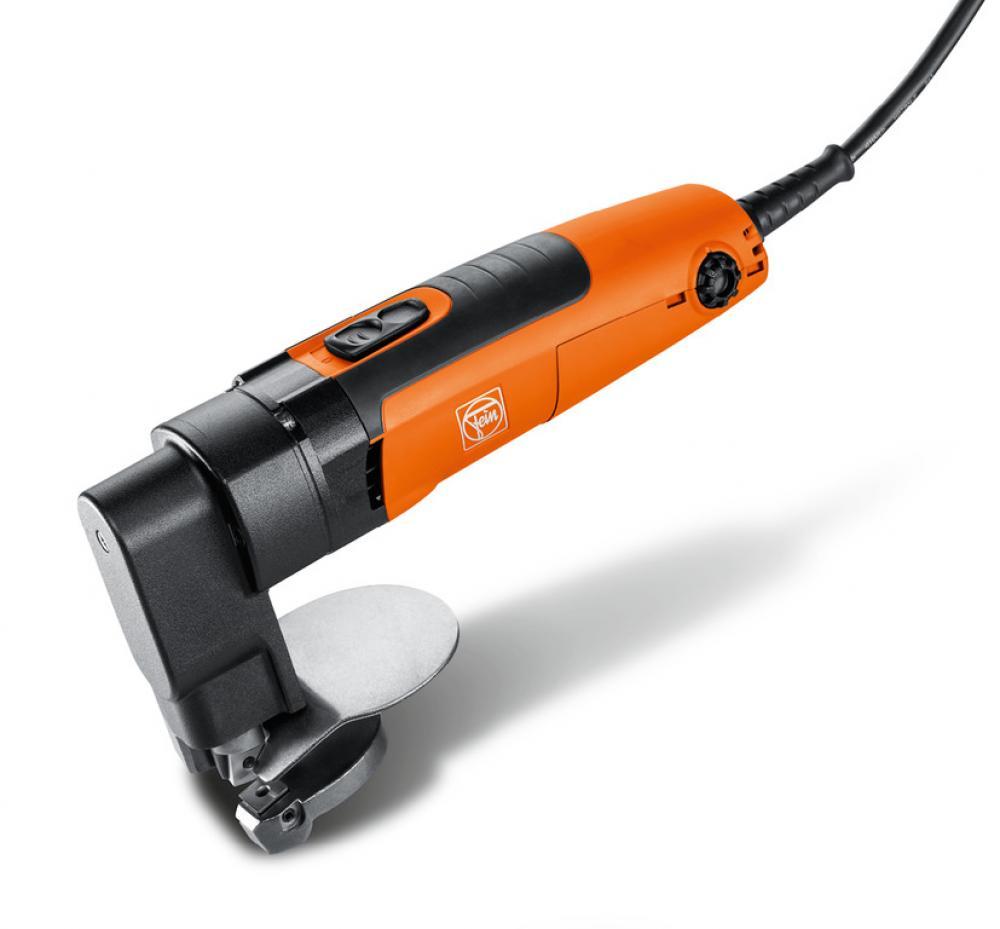

Sheet Metal Shear up to 12 gauge|BLS 2.5 E
Call For Price
- Part Number: 72303561090
- UPC: 04014586874975
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Sheet Metal Shear up to 12 gauge|BLS 2.5 E|Easy-to-use, curve-compatible sheet metal shear for working with stainless steel.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Shears
Industrial Subtype:
Corded Shears
Cable with plug:
16.4 [5] ft[m]
Classification eClass 5.1.4:
21050901
Classification ETIM 8.0:
EC001364
Classification proficlass 7.0:
EAD215c002
COO:
DE
Country of origin:
DE
Cutting speed:
9.8 [3] - 19.7 [6] ft/min[m/min]
delivery:
1 pair of blades|1 set of wrenches|1 hand guard
design type:
BLS 2.5 E
Gross weight (g):
3.322,00
Height (mm):
10.00
Length (mm):
48.00
logistics data:
Gross weight 3.322,00|Net weight 3.322,00|Volume 12.000,00|Length 480,00|Width 250,00|Height 100,00
Machine Type:
Corded
Model:
BLS 2.5 E
Net weight (g):
3.322,00
Non-ferrous metals up to 36000 lbf in²:
0.1181 [3.0] in[mm]
Power consumption:
350 W
Power output:
210 W
Radius of smallest curve:
3/4 [20] in[mm]
Statistical commodity number:
84672985
Steel 116000 lbf in²:
0.063 [1.6] in[mm]
Steel 58000 lbf in²:
0.0984 [2.5] in[mm]
Steel 87000 lbf in²:
0.0787 [2.0] in[mm]
Strokes:
800 - 1,700 spm
Technical attributes:
Power consumption 350 W|Power output 210 W|Strokes 800 - 1,700 spm|Cutting speed 9.8 [3] - 19.7 [6] ft/min[m/min]|Steel 56,000 lbf/in² 3 mm|Steel 84,000 lbf/in² 2 mm|Steel 112,000 lbf/in² 2 mm|Non-ferrous metals up to 35,000 lbf/in² 11 [3.0] gauge[mm
Volume (cm³):
12.00
Weight:
4.63 [2.10] lbs[kg]
Weight (net) (g):
3322
Wide (mm):
25.00
width (mm):
250
Other Details
16 ft. [5 m] cable.
Good curve precision with low sheet-metal distortion.
High performance and powerful motor for the most difficult tasks.
Indexible cutting blades with four sides for clean and burr-free cutting with low operating costs.
Perfect for trimming and cutting.
Stainless steel up to 16 gauge [1.6 mm].
Unrestricted view of the cutting line makes faster work progress possible.
Unrestricted view of the cutting line.
