Hacksaw for pipes up to Ø 24 in|STS 325 R
Call For Price
- Part Number: 75340813000
- UPC: 04014586855646
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview

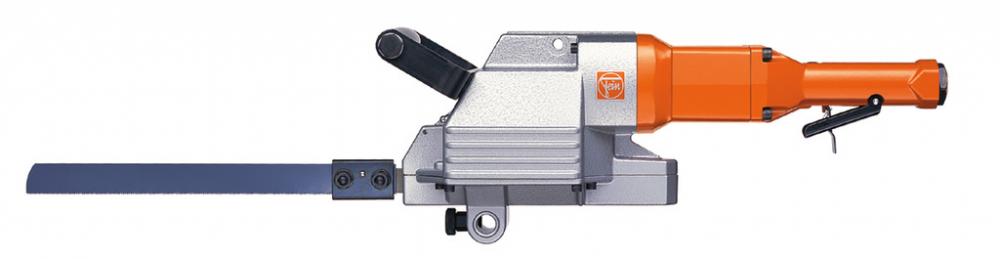

Hacksaw for pipes up to Ø 24 in|STS 325 R|Pneumatic hacksaw for pipes and profiled sections.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Saws and Accessories
Industrial Subtype:
Reciprocating, Jigsaw and Hacksaws Saws
Air consumption:
51.2 [1.45] cfm[m³/min]
Classification eClass 5.1.4:
21060990
Classification ETIM 8.0:
EC003469
Classification proficlass 7.0:
AAC397c002
COO:
DE
Country of origin:
DE
delivery:
2 saw blades (type 063)|1 wrench set|1 handle|1 hose coupling
design type:
STS 325 R
Gross weight (g):
8.462,00
Height (mm):
14.00
Length (mm):
72.00
logistics data:
Gross weight 8.462,00|Net weight 8.462,00|Volume 26.208,00|Length 720,00|Width 260,00|Height 140,00
Model:
STS 325 R
Net weight (g):
8.462,00
Operating pressure:
87 [6.0] psi[bar]
Pipes up to Ø:
17-1/4 [440] * in[mm]
Power output:
1,100 W
Profiles up to W x H:
11-1/2 [290] x 19-3/4 [500] in[mm]
Statistical commodity number:
84671900
Stroke of blade:
2-1/4 [60] in[mm]
Strokes:
330 spm
Technical attributes:
tec_betriebsdruck_global 87 [6.0] psi[bar]|tec_luftverbrauch_global 51.2 [1.45] cfm[m³/min]|Power output 1,100 W|Strokes 330 spm|Stroke of blade 2-1/4 [60] in[mm]|Pipes up to Ø 17-1/4 [440] * in[mm]|Profiles up to W x H 11-1/2 [290] x 19-3/4 [500] in[
Volume (cm³):
26.208,00
Weight:
15.87 [7.20] lbs[kg]
Weight (net) (g):
8462
Wide (mm):
26.00
width (mm):
260
Other Details
* Chain extension available.
Adjustable clamping devices permit mitre cuts up to 45° as well.
Adjustable clamping fixtures.
Clamp and feed device available for profiles and pipes from Ø 3-1/8 in [80 mm] to Ø 24 in [400 mm].
Clamp and feed device available.
Ideally suited for cutting pipes and profiles made of steel, cast iron, autoclaved aerated concrete, and plastics.
