Flat material grinding module|GIL
Call For Price
- Part Number: 79024809573
- UPC: 04014586880952
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview

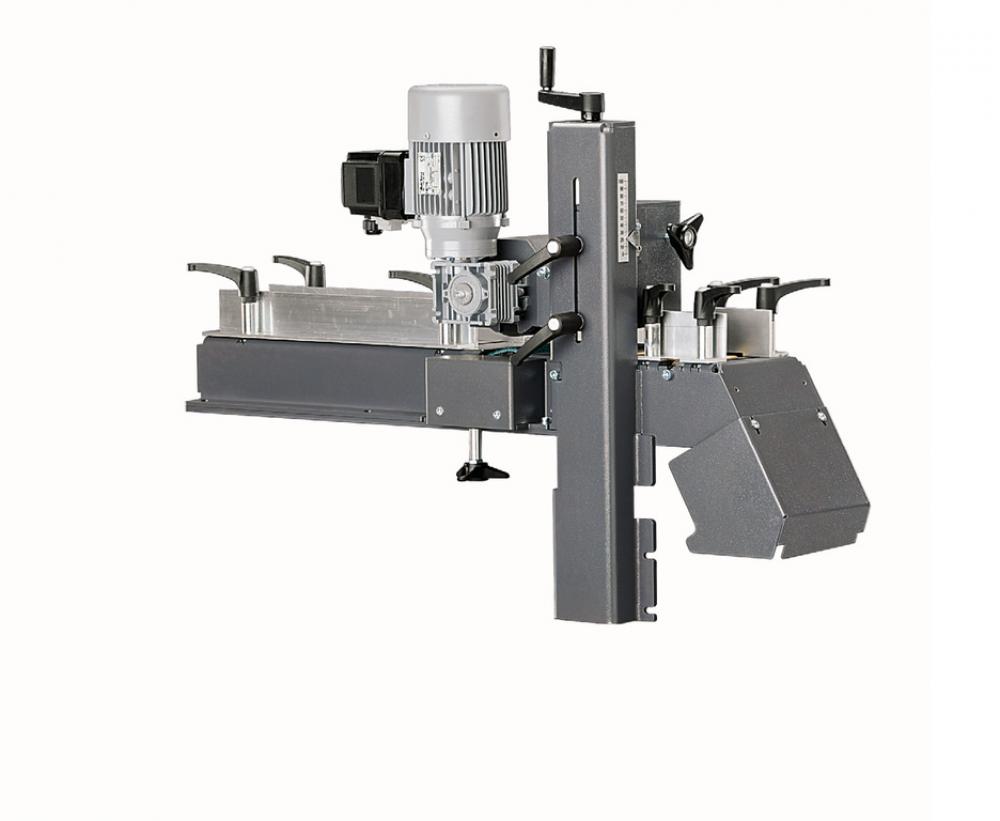

Flat material grinding module|GIL|Flat grinding module for perfect longitudinal grinding of square tube, sections and flat materials
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Grinders
Category Level 4:
Grinder Accessories
Advantages:
High operating speed using automatic feed|Best surface results through finishing|Flat material can also be ground “upright”
Advantages product at all:
High operating speed using automatic feed|Best surface results through finishing|Flat material can also be ground “upright”|Stable belt dimensions 6 x 79 in [150 x 2000 mm]|Belt grinder can be used for contact grinding despite the mounted module|For an
All Logistic data:
Net weight: 71.000,00 g|Gross weight: 71.000,00 g|Volume: 214.038,00 cm³|Width: 690,00 mm|Length: 940,00 mm|Height: 330,00 mm
Belt dimension:
6 [150] x 78-3/4 [2,000] in[mm]
chapter ID:
86852
Class of goods:
84609000
Classification eCl@ss 5.1.4:
21051303
Classification eClass 5.1.4:
21051303
Classification ETIM 8.0:
EC003303
Classification proficl@ss 7.0:
AAC314c002
Classification proficlass 7.0:
AAC314c002
Country of origin:
DE
Current Voltage:
3 x 575V 60Hz
Features:
Stable belt dimensions 6 x 79 in [150 x 2000 mm]|Belt grinder can be used for contact grinding despite the mounted module|For angular work piece|Optional combination with GI 150 (2H) belt grinder|Space saving operation possible using optional swivel plate
FEIN product group:
15351
Gross weight (g):
71.00
Has accessories:
39000000184|39000004760|39000000002|39000000003|69902000000|69902000147|69902410000|69902176000|69903148000|69903149000|69903150000|69903039000|69903040000|69903042000|69903044000|69903046000|69903048000|69903041000|69903043000|69903045000|69903047000|6990
Height (mm):
33.00
Internal Country Code:
Kanada (CA)
Length (mm):
94.00
Machine Type:
Corded
Max. dimension of profile flat material:
4 [100] x 4 [100] in[mm]
Model:
GIL
Net weight (g):
71.00
Number (long):
7 902 48 09 57 3
Number (short):
7 902 48
Power consumption:
0.18 kW
Region:
8
Statistical commodity number:
84609000
Technical attributes:
Power consumption: 0.18 kW|Current/Voltage: 3 x 575V 60Hz|Belt dimension: 6 [150] x 78-3/4 [2,000] in[mm]|Max. dimension of profile/flat material: 4 [100] x 4 [100] in[mm]|Weight: 141.1 [64] lbs[kg]
Volume (cm³):
214.038,00
Weight:
141.1 [64] lbs[kg]
Wide (mm):
69.00
Widh (mm):
690,00
Other Details
Belt grinder can be used for contact grinding despite the mounted module
Best surface results through finishing
Flat material can also be ground “upright”
For angular work piece
High operating speed using automatic feed

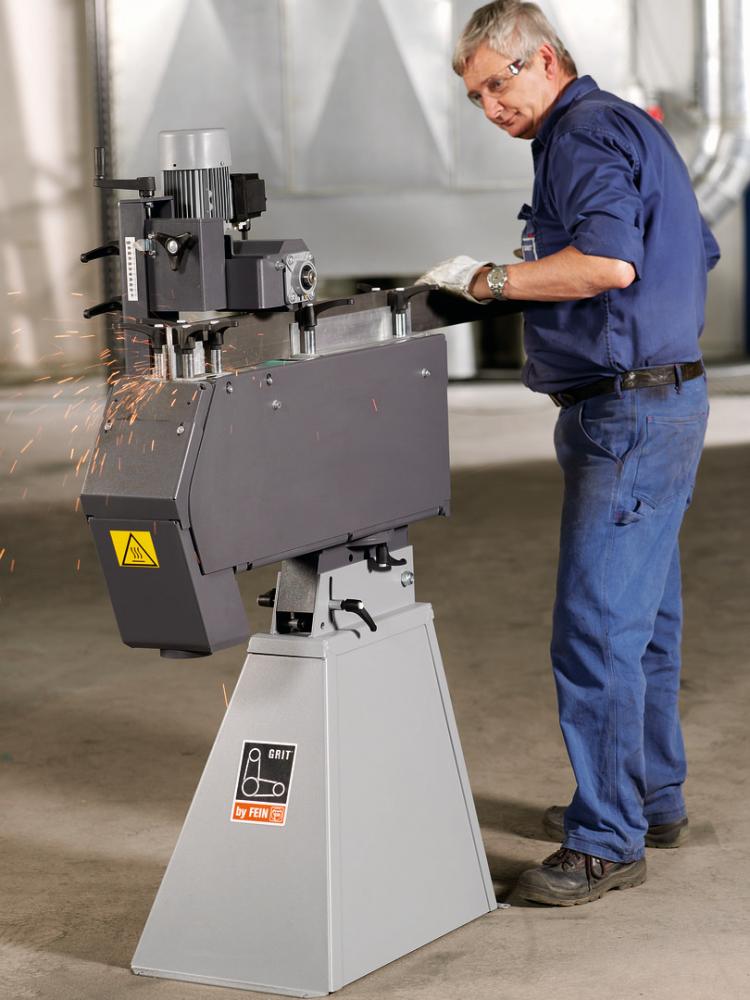

Optional combination with GI 150 (2H) belt grinder
Space saving operation possible using optional swivel plate
Stable belt dimensions 6 x 79 in [150 x 2000 mm]
