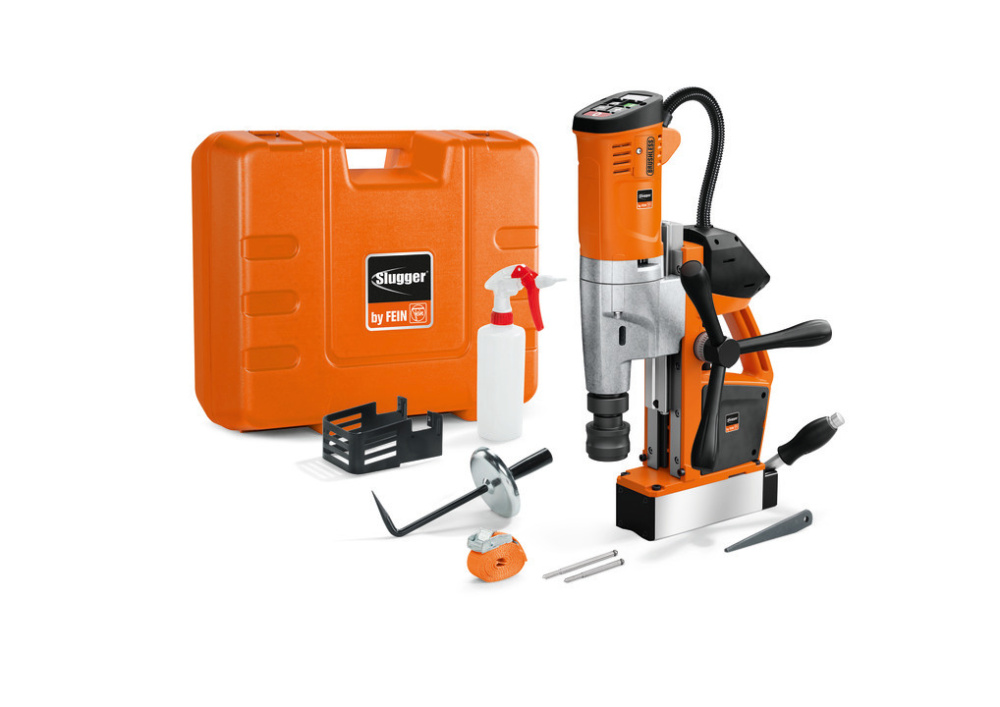

![Cordless Universal magnetic base drill up to 1-3/8 [35] in[mm]](/vendors/7056/large/c80ad1cf377988adf0b497776b55f79d.jpg "Cordless Universal magnetic base drill up to 1-3/8 [35] in[mm]")
Cordless Universal magnetic base drill up to 1-3/8 [35] in[mm]
Call For Price
- Part Number: 71700562090
- UPC: 04014586900391
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Cordless Universal magnetic base drill up to 1-3/8 [35] in[mm]|AJMU 137 PMQW AS|Single-speed cordless magnetic drill with universal features. Forward/reverse, double dovetail for extended stroke range and permanent magnet and maximum functionality for mobile work on the construction site.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Power Drills
Industrial Subtype:
Oscillating Tools
Cordless Magnetic Drill Presses
Category Level 4:
Oscillating Tool Accessories
Battery Compatibility:
Li-ion / CORE 18 V Li-ions
Battery Interface (v):
18
Battery Voltage (v):
18
Carbide Cutter Max. Dia. (in):
1-3/8
Carbide Cutter Max. Dia. (mm):
35
Country of Origin:
DE
Cutter Change:
tool-free
Cutter Holder:
3/4" straight shank
Cutter Max. Drilling Depth (in):
2, 3
Cutter Max. Drilling Depth (mm):
52, 75
Full Load Speed:
130 - 520
Gross Weight (g):
17.400,00
HSS Cutter Dia. (maximum) (in):
1-3/8
HSS Cutter Dia. (maximum) (mm):
35
Machine Type:
Cordless

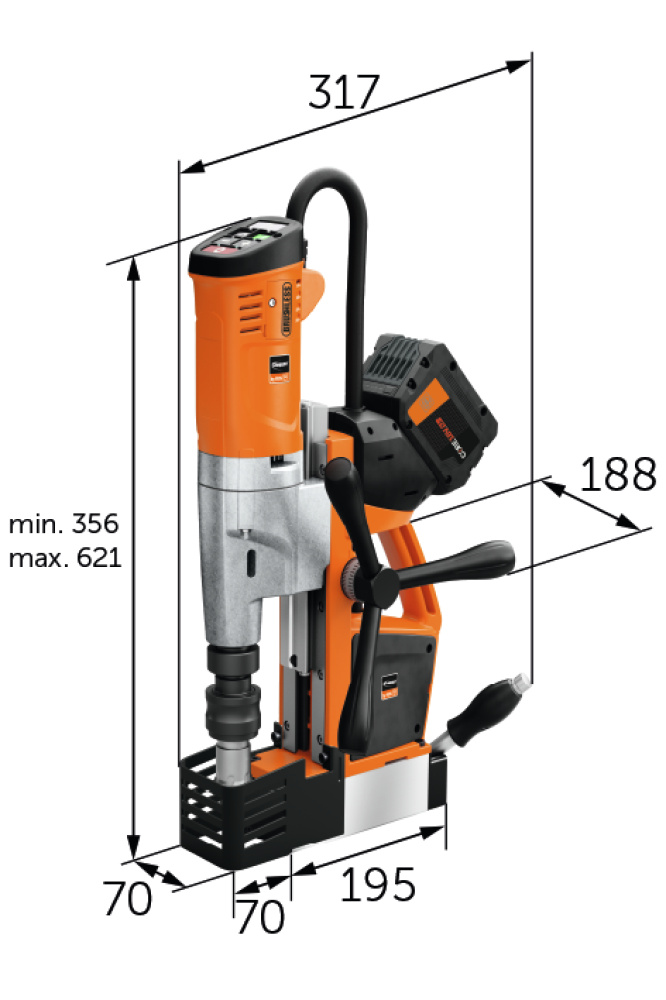

Magnetic Base Dimensions (in):
7-11/16 x 2-3/4
Magnetic Base Dimensions (mm):
195 x 70
Magnetic Holding Force (lbs):
2023
Magnetic Holding Force (n):
9000
Max. Countersinking Dia. (in):
1-1/4
Max. Countersinking Dia. (mm):
31
Model:
AJMU 137 PMQW AS
Motor:
Brushless
Reaming Max. Dia. (in):
3/4
Reaming Max. Dia. (mm):
18
Stroke (in):
5-5/16
Stroke (mm):
135
Tapping:
1/2"
Tool Mount:
MT 2
Total Stroke Range (in):
10-1/4
Total Stroke Range (mm):
260
Twist Drill Dia. (maximum) (in):
3/4
Twist Drill Dia. (maximum) (mm):
18
Volume (cmÂł:
79.300,00
Weight Without Battery (lbs):
26.90
Wide (mm):
520,00
Other Details
A Convenient magnetic holding force indicator supports the safe positioning of the tool.
COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.
Extremely durable cordless mag drill with a FEIN PowerDrive designed for up to 60,000 holes during a 300 h usage period.
Intuitive operator controls located on the top of the drill motor for maximum visibility.
Lightweight tool that delivers up to 25% more battery life than our competitors. Using CORE 18V 12 Ah battery, up to 48 holes per charge (11/16" diameter on 1/2" mild steel plate).
Maximum performance with AMPShare CORE 18 V 8.0 Ah / 12.0 Ah
Memory function speed storage.
MK2 tool mount for direct use of industrial tools.
Optional using accessory.
Secure position thanks to extra narrow permanent magnet with pre-magnetization for convenient and simple alignment.
State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.

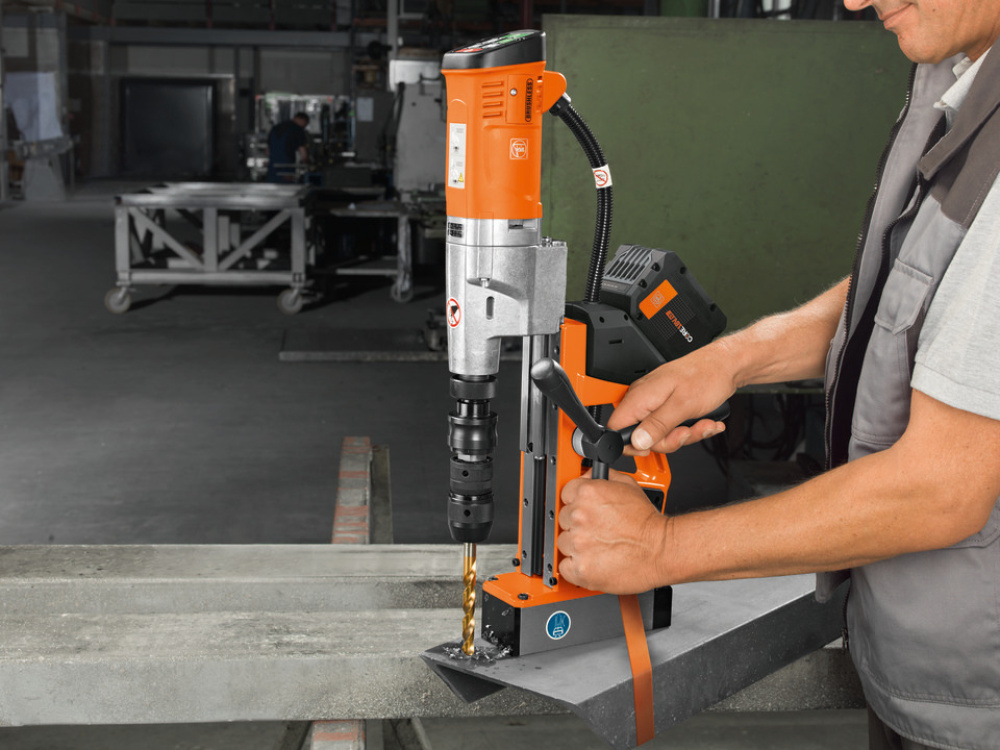

The lightest cordless mag drill in the world at only 26.9 lbs. This drill features forward/reverse, electronic speed control, and 10-1/4" stroke range for maximum flexibility in all applications (drilling, tapping, twist drilling, reaming and counters
Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece.
