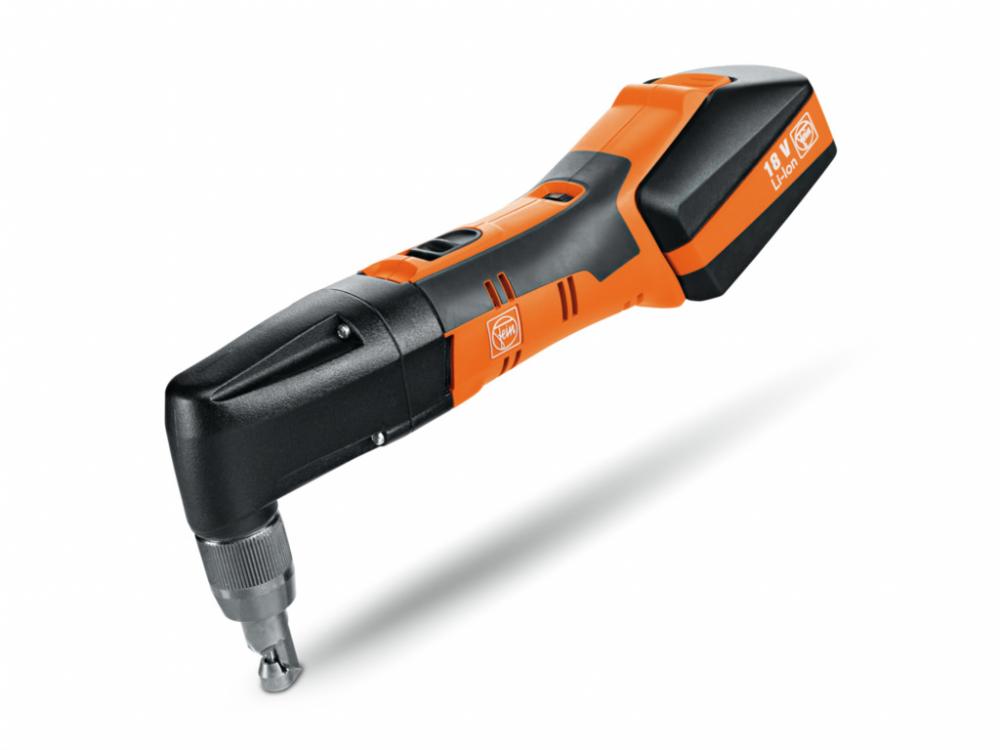

Cordless nibbler for up to 18 gauge thickness|ABLK 18 1.3 CSE
Call For Price
- Part Number: 71320562090
- UPC: 04014586892436
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (5)
Product Overview
Cordless nibbler for up to 18 gauge thickness|ABLK 18 1.3 CSE|Compact, maneuverable nibbler for roof and facade construction. Precise cuts in corrugated sheet metal up to 17 gauge [1.3 mm] thickness.
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Cutting Tools
Industrial Subtype:
Nippers and Nibblers
Advantages:
148 [45] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (6 Ah).|6.2 ft./min [] cutting speed for excellent performance.|Variable drilling speed due to electronically adjustable stroke speed.
Advantages product at all:
148 [45] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (6 Ah).|6.2 ft./min [] cutting speed for excellent performance.|Variable drilling speed due to electronically adjustable stroke speed.|MultiVolt-interface. Cordless
All Logistic data:
Net weight: 0,00 g|Gross weight: 0,00 g|Volume: 0,00 cm³|Width: 0,00 mm|Length: 0,00 mm|Height: 0,00 mm
Battery capacity:
6 Ah
Battery compatibility:
Li-ion / HighPower Li-ions
Battery interface:
MultiVolt*
Battery voltage:
18 V
chapter ID:
86804
Class of goods:
84672920
Classification eCl@ss 5.1.4:
21059013
Classification eClass 5.1.4:
21059013
Classification ETIM 8.0:
EC003278
Classification proficl@ss 7.0:
AAC266c003
Classification proficlass 7.0:
AAC266c003
Country of origin:
DE
Cutting speed:
6.2 [1.9] ft/min[m/min]
Cutting width:
3/16 [4] in[mm]
Features:
MultiVolt-interface. Cordless tool can be used with all FEIN li-ion batteries (12-18 V).|Brief overlapping area up to 12 gauge [2.6 mm].|Optimum handling due to an extremely slim gear head.|Comfortable light weight.|QuickIN punch and die fast change system
FEIN product group:
1531
Has accessories:
33901118010|33901119000|63602048004|63602048040|63602048050|30109141003|30109141020|30109141030|63602048013|30109154007|92602071019|32132020129|92604188010|92604175020|92604182020|92604314090|92604315090|92604201020
Immersion Ø with die:
3/4 [19] in[mm]
Internal Country Code:
Canada/USA (CA/US)
Machine Type:
Cordless
Model:
ABLK 18 1.3 CSE
Non-ferrous metals up to 36000 lbf in²:
0.0787 [2.0] in[mm]
Number (long):
7 132 05 62 09 0
Number (short):
7 132 05 62
Price includes:
2 rechargeable batteries (Li-ion)|1 rapid charger ALG 80|1 die for corrugated sheet metal (3 01 09 169 00 9)|1 punch (6 36 02 050 00 0)|1 tool case
Radius of smallest curve (inside outside):
1/2 [15] / 3/4 [20] in[mm]
Region:
8
Statistical commodity number:
84672920
Steel 116000 lbf in²:
0.0236 [0.6] in[mm]
Steel 58000 lbf in²:
0.0512 [1.3] in[mm]
Steel 87000 lbf in²:
0.0315 [0.8] in[mm]
Strokes:
900 - 1,600 spm
Technical attributes:
Battery voltage: 18 V|Battery capacity: 6 Ah|Battery compatibility: Li-ion / HighPower Li-ions|Battery interface: MultiVolt|Strokes: 900 - 1,600 spm|Cutting speed: 6.2 [1.9] ft/min[m/min]|Steel 58,000 lbf/in²: 0.0512 [1.3] in[mm]|Steel 87,000 lbf/in²: 0
Weight incl. battery:
5.07 [2.30] lbs[kg]
Weight without battery:
3.53 [1.60] lbs[kg]
Widh (mm):
0,00
Other Details
* MultiVolt interface. Cordless tool can be used with all FEIN li-ion batteries (12-18 V, except 12 V/6 Ah).
148 [45] ft[m] cutting capacity (in 22 [0.8] gauge[mm] sheet metal) with one battery charge (6 Ah).
6.2 ft./min [] cutting speed for excellent performance.
Brief overlapping area up to 12 gauge [2.6 mm].
Comfortable light weight.
Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
Optimum handling due to an extremely slim gear head.
Proven MultiMaster motor with outstanding power and durability.
QuickIN punch and die fast change system.
Rotating punch for up to 30% longer service life.
Variable drilling speed due to electronically adjustable stroke speed.
