4-speed cordless drill/driver|ASCM 18 QM
Call For Price
- Part Number: 71161161090
- UPC: 04014586887319
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (7)
Product Overview

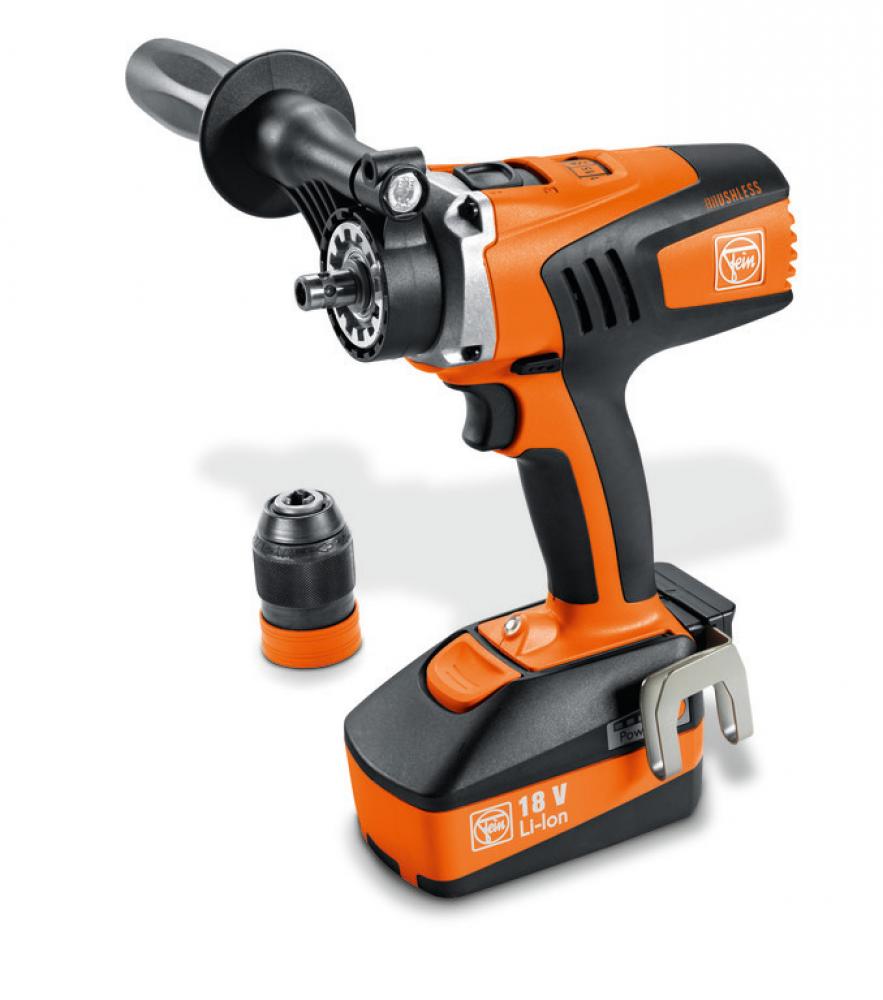

4-speed cordless drill/driver|ASCM 18 QM|4-Speed cordless drill/driver with brushless motor and QuickIN MAX interface. Uncompromising power for drilling and tapping up to 1/2 [12] in[mm] and drilling with carbide hole saws.
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Cordless Drills
Accessory interface:
QuickIN MAX
Advantages:
Fully encapsulated and dustproof brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.|4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.|QuickIN MAX accessory interface for al
Advantages product at all:
Fully encapsulated and dustproof brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.|4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.|QuickIN MAX accessory interface for al
All Logistic data:
Net weight: 6.032,00 g|Gross weight: 6.032,00 g|Volume: 19.344,00 cm³|Width: 480,00 mm|Length: 310,00 mm|Height: 130,00 mm
Battery capacity:
6 Ah
Battery compatibility:
Li-ion / HighPower Li-ions
Battery interface:
18 V
Battery voltage:
18 V
Capacity in steel Ø:
31/32 [25] in[mm]
Capacity in wood Ø:
1-31/32 [50] in[mm]
chapter ID:
86793
Chuck capacity:
1/16 [1.5] - 1/2 [13] in[mm]
Class of goods:
84672110
Classification eCl@ss 5.1.4:
21052002
Classification eClass 5.1.4:
21052002
Classification ETIM 8.0:
EC001371
Classification proficl@ss 7.0:
AAC240c003
Classification proficlass 7.0:
AAC240c003
Country of origin:
DE
Fastening:
3/8 [10] x 15-3/4 [400] in[mm]
Features:
High torques up to 797 [90] in/lbs[Nm].|Includes QuickIN solid metal drill chuck (1,062 [120] in/lbs[Nm]) with carbide jaws and high clamping force.|Optimal speed (3,850 rpm) in 4th gear for small diameters.|Optimal speed (1,950 rpm) in 3rd gear for 3/8 [8
FEIN product group:
1173
Gearbox:
4-speed
Gross weight (g):
6.032,00
Has accessories:
33901118010|33901119000|60510011009|63208002010|63208005010|64203006010|60510222010|64203002010|64203003010|63206077001|63206064001|63206065005|63206066008|63206070006|63206078009|63206075004|63206079003|64203007010|63131014010|63131015010|63131016010|6313
Height (mm):
13.00
Internal Country Code:
Canada/USA (CA/US)
Length (mm):
31.00
Machine Type:
Cordless
Max. torque (hard soft):
797 [90] / 398 [45] in/lbs[Nm]
Model:
ASCM 18 QM
Motor:
brushless
Net weight (g):
6.032,00
No load speed:
400 / 800 / 1,950 / 3,850 rpm
Number (long):
7 116 11 61 09 0
Number (short):
7 116 11 61
Price includes:

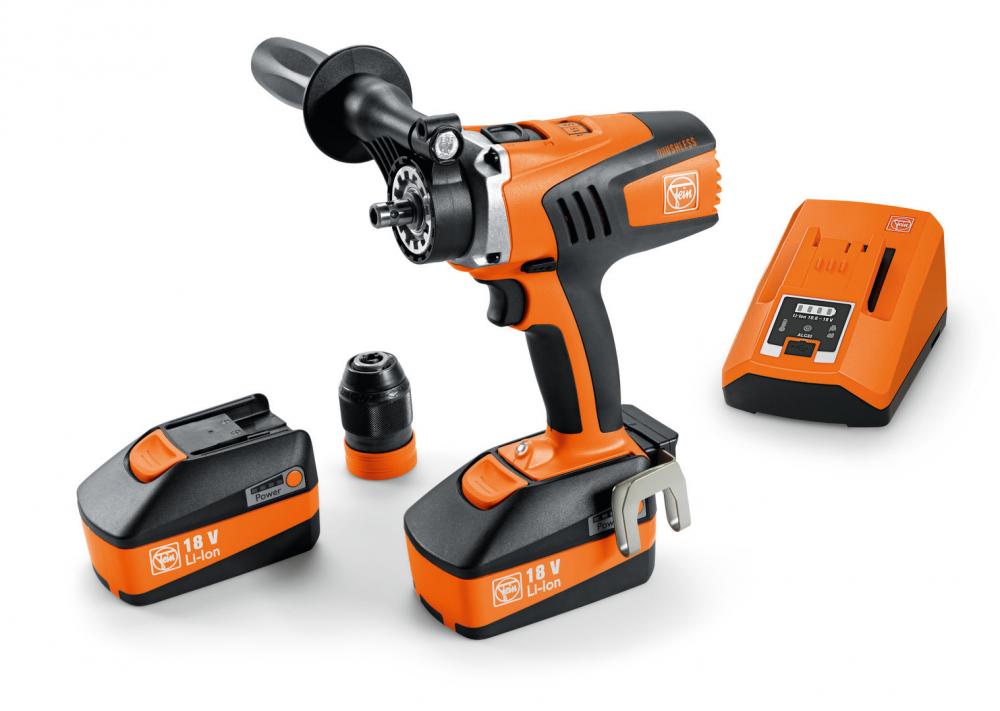

1 cordless drill/driver|2 rechargeable batteries (Li-ion)|1 rapid charger ALG 80|1 QuickIN drill chuck (1,062 [120] in/lbs[Nm])|1 belt clip|1 bit garage|1 handle|1 tool case
Region:
8
Statistical commodity number:
84672110
Tapping:
M 12
Technical attributes:
Battery voltage: 18 V|Battery capacity: 6 Ah|Battery compatibility: Li-ion / HighPower Li-ions|Battery interface: 18 V|Motor: brushless|Gearbox: 4-speed|Accessory interface: QuickIN MAX|No load speed: 400 / 800 / 1,950 / 3,850 rpm|Max. torque (hard/soft):
Torque steps:
15 + 1
Volume (cm³):
19.344,00
Weight incl. battery:
4.85 [2.20] lbs[kg]
Weight without battery:
3.31 [1.50] lbs[kg]
Wide (mm):
48.00
Widh (mm):
480,00
Other Details
2,500 screw applications (3/16 x 1-9/16 [5 x 40] in[mm] in wood) with one battery charge (6 Ah).
4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.
Cut threads efficiently in 1st gear.
Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
Electronic torque setting.
FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.
Fully encapsulated and dustproof brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
High torques up to 797 [90] in/lbs[Nm].
Includes QuickIN solid metal drill chuck (1,062 [120] in/lbs[Nm]) with carbide jaws and high clamping force.
One charger for all voltage classes of FEIN Li-ion batteries.
Optimal speed (1,950 rpm) in 3rd gear for 3/8 [8] in[mm] dia.
Optimal speed (3,850 rpm) in 4th gear for small diameters.
QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Fast change between applications.
The battery capacity can be read directly on the battery.
