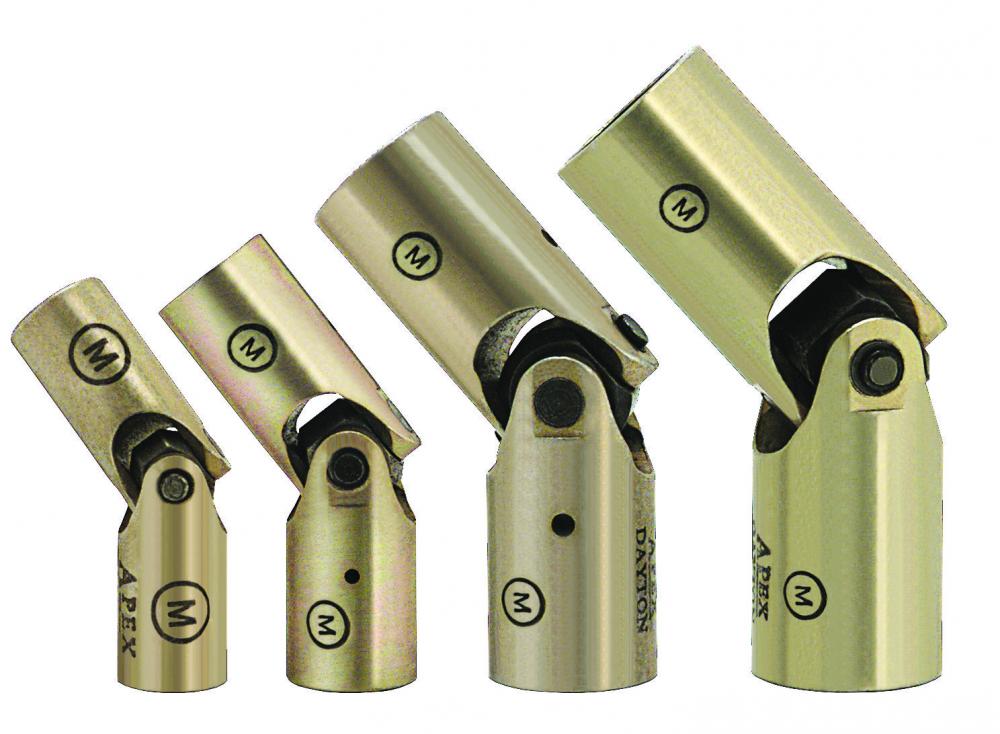

Light-Duty MS 270 Series
Call For Price
- Part Number: MS-20270-B10
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Power Transmission
Industrial Subcategory:
Couplings, Collars, and Adapters
Industrial Subtype:
Universal Joints
Axial Tension / Compression (lbs):
300 in
Axial Tension / Compression (N):
1335
Bore Depth (C) (in):
0.63 in
Bore Depth (C) (mm):
15.88 mm
Bore Diameter (G) (in):
0.50 in
Bore Diameter (G) (mm):
12.70 mm
Brand:
APEX
Endurance Torque Test (in lbs):
75 in/lb
Endurance Torque Test (Nm):
8.48 Nm
Endurance Torque Test Angle:
15 °
Hole Location (in):
0.56 in
Hole Location (mm):
14.27 mm
Max Angle:
0.64 °
Min Length (in):
0.75 in
Min Length (mm):
19.05 mm
Min. Ultimate Static Torsional Strength (in lbs):
504 in/lb
Min. Ultimate Static Torsional Strength (Nm):
57 Nm
Outside Diameter (A) in:
0.62 in
Outside Diameter (A) mm:
15.75 mm
Overall Length (B) in:
2.19 in
Overall Length (B) mm:
55.55 mm
Product Family:
Apex Fastener
Torsional Play Angle:
0 °
Torsional Play Test Torque (in lbs):
4.00 in/lb
Torsional Play Test Torque (Nm):
0.452 Nm
Weight (oz):
1.52 oz
Weight Max (kg):
0.043 kg
Weight Max (lb):
0.095 lb
