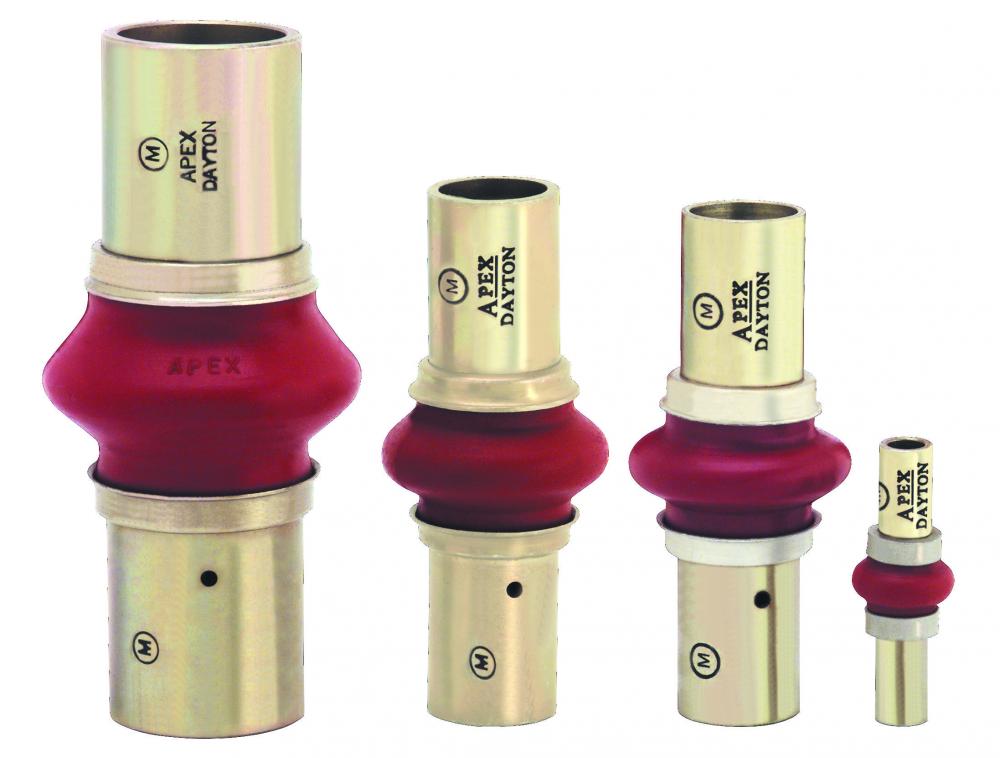

Heavy-Duty MS 271 Series
Call For Price
- Part Number: MS-20271-B10
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Power Transmission
Industrial Subcategory:
Couplings, Collars, and Adapters
Industrial Subtype:
Universal Joints
Axial Tension / Compression (lbs):
1500 in
Axial Tension / Compression (N):
6672
Bore Depth (C) (in):
0.75 in
Bore Depth (C) (mm):
19.05 mm
Bore Diameter (G) (in):
0.50 in
Bore Diameter (G) (mm):
12.70 mm
Brand:
APEX
Endurance Torque Test (in lbs):
162 in/lb
Endurance Torque Test (Nm):
18.31 Nm
Endurance Torque Test Angle:
15 °
Hole Location (in):
0.69 in
Hole Location (mm):
17.45 mm
Max Angle:
0.50 °
Max Cover Diameter (J) Inches (+/- .015):
1.16 in
Max Cover Diameter (J) mm (+/- .381):
29.36 mm
Min Length (in):
0.81 in
Min Length (mm):
20.65 mm
Min. Ultimate Static Torsional Strength (in lbs):
1080 in/lb
Min. Ultimate Static Torsional Strength (Nm):
122 Nm
Outside Diameter (A) in:
0.62 in
Outside Diameter (A) mm:
15.75 mm
Overall Length (B) in:
2.75 in
Overall Length (B) mm:
69.85 mm
Product Family:
Apex Fastener
Torsional Play Angle:
0 °
Torsional Play Test Torque (in lbs):
4.00 in/lb
Torsional Play Test Torque (Nm):
0.452 Nm
Weight (oz):
2.89 oz
Weight Max (kg):
0.082 kg
Weight Max (lb):
0.181 lb
