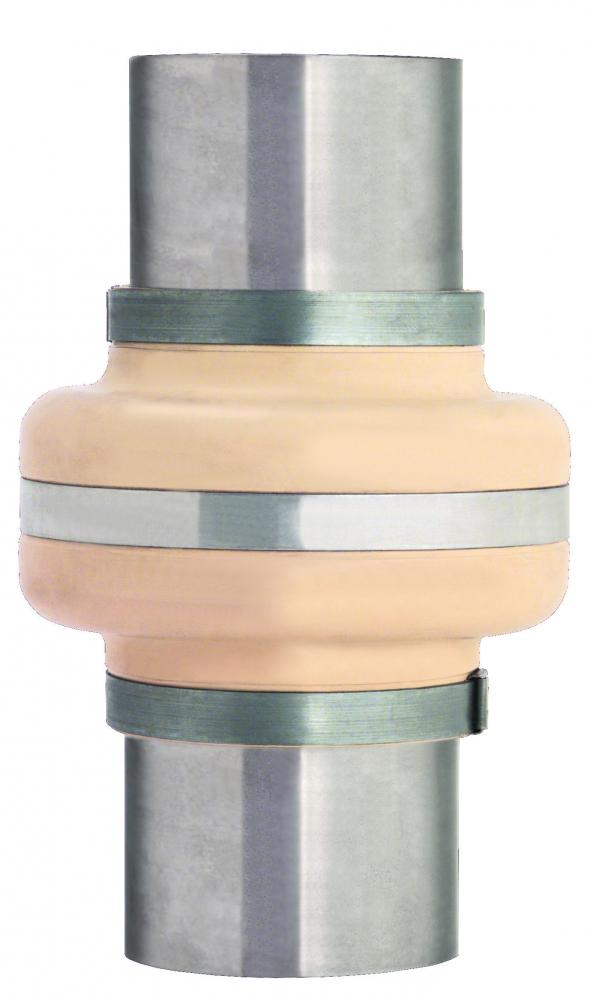

400 Series
Call For Price
- Part Number: 400-40-22-10
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Industrial Category:
Power Transmission
Industrial Subcategory:
Couplings, Collars, and Adapters
Industrial Subtype:
Universal Joints
Bore Depth (C) (in):
1.75 in
Bore Depth (C) (mm):
44.450 mm
Bore Diameter (G) (in):
1.38 in
Bore Diameter (G) (mm):
34.925 mm
Brand:
APEX
Cover Style:
No Cover
Hub Type:
Bored Hubs
Keyaway Depth (in):
0.188 in
Keyaway Depth (mm):
4.775 mm
Keyaway Width (in):
0.313 in
Keyaway Width (mm):
7.938 mm
Max Momentary Stall Torque (in lbs):
22800 in/lb
Max Momentary Stall Torque (Nm):
2576 Nm
Max Peak Torque (in lbs):
7603 in/lb
Max Peak Torque (Nm):
859 Nm
Min. Ultimate Static Torsional Strength (in lbs):
38040 in/lb
Min. Ultimate Static Torsional Strength (Nm):
4298 Nm
Outside Diameter (A) in:
2.50 in
Outside Diameter (A) mm:
63.500 mm
Overall Length (B) in:
7.0 in
Overall Length (B) mm:
177.8 mm
Product Family:
Apex Fastener
Ultimate Axial Strength (lbs):
54000 in
Ultimate Axial Strength (N):
240204
Weight of Solid-hub Covered Assembly kg:
4.491 kg
Weight of Solid-hub Covered Assembly lbs:
9.9 lb
